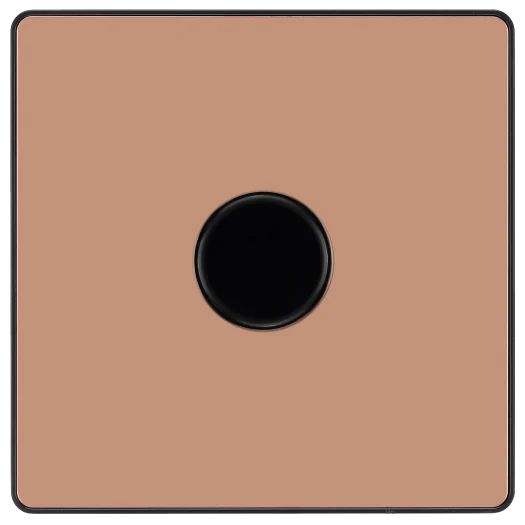

Create precise, comfortable lighting while adding a premium decorative finish with the BG Evolve PCDCP81B-01 Polished Copper Single 2 Way 200W Trailing Edge Dimmer Switch. Designed for modern dimmable LED lighting as well as compatible traditional lamps, this sophisticated rotary push dimmer combines smooth brightness adjustment, push on/off operation and a low-profile screwless polished copper faceplate.

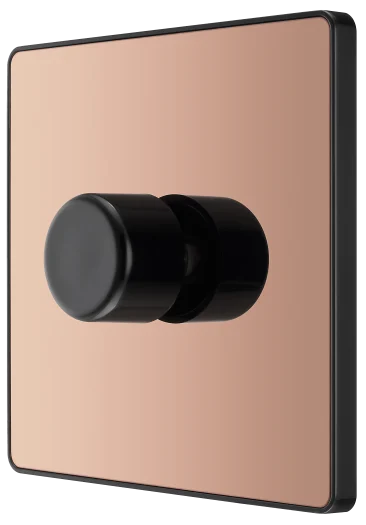

The PCDCP81B-01 is a single-gang dimmer, allowing one compatible lighting circuit to be switched and dimmed from one convenient wall control. Its rotary knob adjusts the brightness level, while pressing the control switches the lighting on or off. This makes it ideal for living rooms, bedrooms, dining rooms, kitchens, home cinemas and other interiors where adjustable lighting can help create different moods and lighting levels.

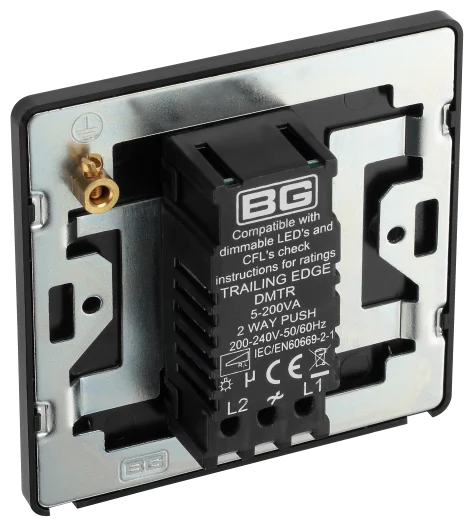

At the heart of the switch is BG’s intelligent trailing-edge dimming technology. Trailing-edge control is particularly suited to many modern dimmable LED lamps and provides a lower minimum load than traditional leading-edge dimmers, helping improve compatibility with low-wattage lighting and reduce unwanted flickering.

Key Features

• Polished copper decorative finish
• Single-gang rotary push dimmer
• 2-way on/off switching capability
• Intelligent trailing-edge technology
• 5–100W dimmable LED load
• 5–200W tungsten/incandescent load
• 20–200W halogen load
• 5–100W dimmable CFL load
• Push on/off operation
• Rotary brightness adjustment
• Smooth and silent dimming
• Soft-start lamp protection
• Built-in overload protection
• Low minimum load for improved LED compatibility
• Screwless clip-on front plate
• Captive backed-out terminals
• Minimum 25mm mounting-box depth
• Approximately 86 × 86 × 44mm
• BS EN 60669-2-1 compliant
• Manufacturer-advertised 25-year warranty
