BG Evolve PCDCP22B 13A Double Switched Socket - Polished Copper

BG Evolve PCDCP22B-01 Polished Copper Double Switched Socket

Bring practical everyday power and premium decorative styling together with the BG Evolve PCDCP22B-01 Polished Copper Double 13A Switched Socket.

Designed for standard UK three-pin plugs, this double wall socket provides two individually controlled power outlets within a reflective Polished Copper screwless plate. Contrasting black socket inserts and rocker switches create a distinctive modern finish for kitchens, bedrooms, living rooms, home offices, apartments, hotels and commercial interiors.

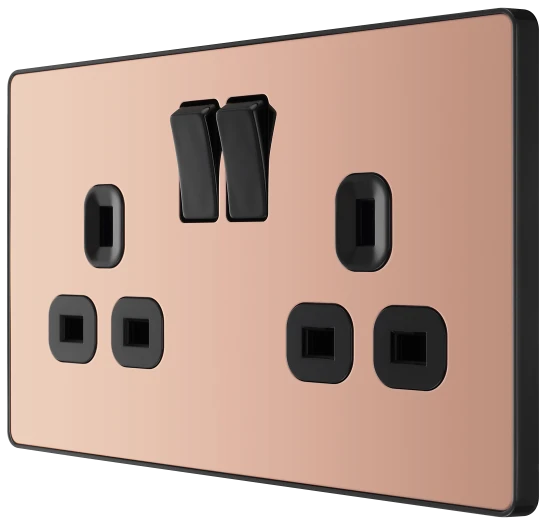

Two Individually Switched 13A Outlets

The PCDCP22B-01 contains two Type G UK socket outlets, each controlled by its own single-pole rocker switch. This allows connected appliances to be switched independently without removing their plugs.

The socket is rated at 13A and 250V AC and operates on a standard 220–240V UK electrical supply. It is suitable for compatible domestic and commercial equipment that remains within the socket, circuit and protective-device ratings.

Suitable applications include powering compatible:

• Televisions and entertainment equipment
• Computers, monitors and office equipment
• Table and floor lamps
• Phone and tablet chargers
• Kitchen appliances
• Audio systems
• Hotel-room equipment
• General household electrical products

Premium Polished Copper Finish

The reflective Polished Copper plate provides a warm decorative alternative to traditional white, chrome or brushed-steel accessories. The black socket inserts and switches create a bold contrast and help the accessory coordinate with dark appliances and contemporary interior hardware.

The finish works particularly well alongside:

• Copper pendant lighting
• Warm metallic handles and taps
• Black kitchen appliances
• Dark cabinets and feature walls
• Natural timber furniture
• Industrial-style interiors
• Luxury apartments
• Boutique hotels
• Restaurants and bars
• Premium residential developments

Matching switches, USB charging sockets and other accessories from the BG Evolve Polished Copper range can be used throughout a property to create a consistent electrical-accessory scheme.

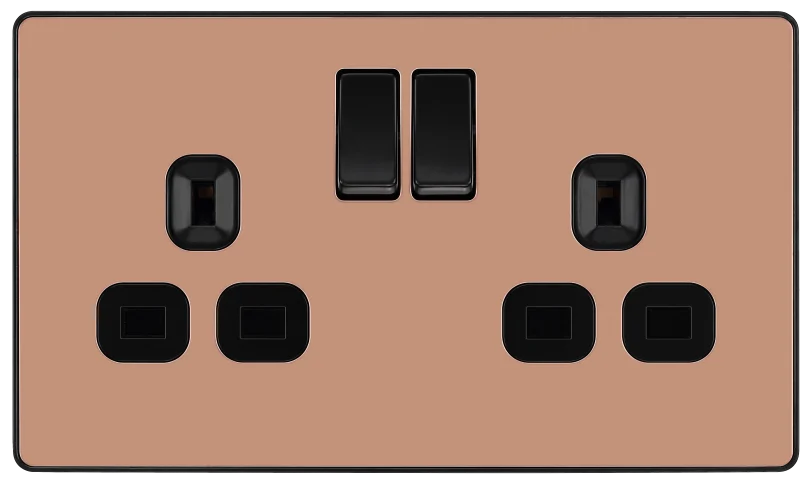

Slim Screwless Front Plate

The decorative front plate clips onto the installed socket base and conceals the mounting screws, producing a cleaner and more modern appearance than a traditional socket with exposed screw heads.

The removable plate can also be left off while the surrounding wall is painted or wallpapered and clipped into place after decorating is complete. This helps protect the Polished Copper surface during installation and refurbishment work.

The electrical supply must always be safely isolated before the plate is removed or installation work is undertaken.

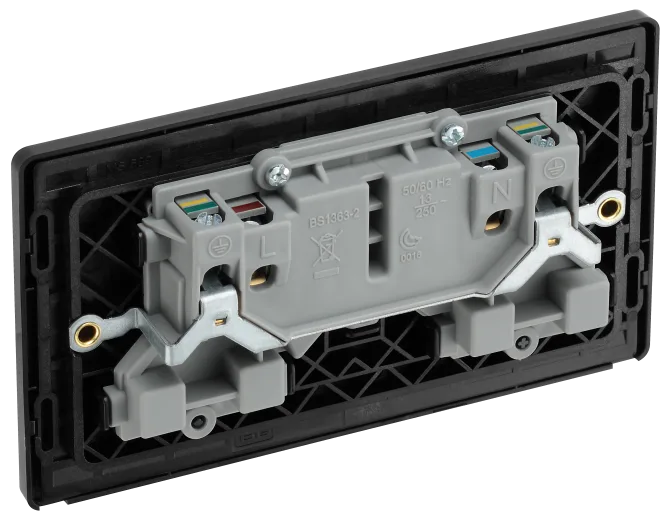

Angled Colour-Coded Terminals

Angled, in-line terminals provide accessible wiring positions behind the socket, while printed colour coding helps electricians identify the live, neutral and earth connections.

Captive backed-out terminal screws remain retained within the mechanism and are supplied ready for conductor insertion. This installer-friendly arrangement can reduce preparation time and helps prevent loose terminal screws from being lost.

The official terminal capacities are:

• Three 2.5mm² conductors
• Three 4mm² conductors
• Two 6mm² conductors

These capacities support suitable ring-final, radial and spur arrangements, subject to the circuit design and applicable wiring requirements.

Twin Earth Terminals

Two earth terminals are fitted as standard, providing additional protective-conductor capacity for suitable high-integrity earthing arrangements.

All protective conductors must be properly sleeved and terminated. A metal mounting box must also be connected to earth where required by the installation.

Minimum 35mm Back Box

The PCDCP22B-01 requires a minimum 35mm double-gang mounting box and uses standard 120.6mm horizontal fixing centres.

Suitable mounting options include:

• A 35mm double metal back box
• A deeper recessed mounting box
• A compatible double dry-lining box
• An appropriate surface-mounted pattress

A deeper box may provide additional wiring space where several conductors enter the socket position.

Dimensions

The official technical drawing gives approximate dimensions of:

• Width: 146mm
• Height: 86mm
• Overall depth: 29mm
• Mechanism depth behind the plate: approximately 21mm
• Front-plate projection: approximately 5mm
• Fixing centres: 120.6mm
• Minimum box depth: 35mm

These dimensions follow the standard UK double-socket format while maintaining the low-profile appearance associated with the Evolve range.

Suitable for Domestic and Commercial Interiors

The combination of two individually switched outlets and decorative Polished Copper styling makes the PCDCP22B-01 suitable for:

• Modern kitchens
• Living rooms and dining spaces
• Bedrooms and dressing rooms
• Home offices
• Apartments and new-build homes
• Hotel bedrooms
• Restaurants and bars
• Reception areas
• Premium offices
• Commercial refurbishment projects

It is particularly effective where electrical accessories remain clearly visible and contribute to the overall interior design.

IP20 Indoor Rating

The socket carries an IP20 rating and is intended for dry indoor wall locations. It should not be installed outdoors or in areas exposed to rain, direct water spray or excessive moisture.

Certification and 25-Year Guarantee

The PCDCP22B-01 is manufactured to BS 1363-2:2016+A1:2018, is rated at 13A and 250V AC and carries Intertek licence number 1013. Fixing screws and installation instructions are supplied with the socket.

BG provides a 25-year manufacturer guarantee, subject to correct installation, suitable use and the manufacturer’s current guarantee conditions.
