BG Evolve PCDCP21B Single 13A Switched Socket - Polished Copper

BG Evolve PCDCP21B-01 Polished Copper 13A Switched Socket

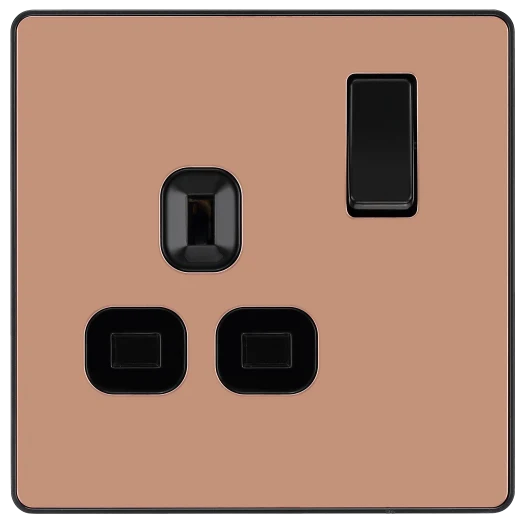

Add a warm metallic finishing touch to a modern electrical installation with the BG Evolve PCDCP21B-01 Polished Copper Single 13A Switched Socket.

Designed for standard UK three-pin plugs, this single-gang wall socket combines everyday power access with a reflective Polished Copper plate, coordinated black insert and slim screwless design. It is ideal for contemporary kitchens, bedrooms, living rooms, home offices, apartments, hotels and premium commercial interiors.

Single Switched UK Power Outlet

The PCDCP21B-01 provides one Type G UK socket outlet with an individual single-pole rocker switch. It is rated at 13A and 250V AC, making it suitable for compatible domestic and commercial appliances that remain within the circuit and socket ratings.

It can provide a convenient connection point for suitable equipment such as:

• Table and floor lamps
• Televisions and entertainment equipment
• Computers and monitors
• Phone and tablet chargers
• Small kitchen appliances
• Home-office equipment
• Audio systems
• General household electrical products

The switch provides straightforward local control, allowing the outlet to be turned off without removing the connected plug.

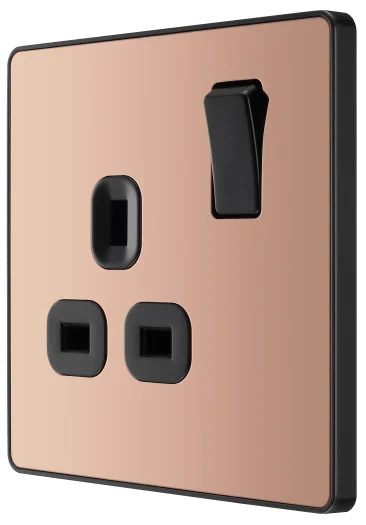

Premium Polished Copper Finish

The reflective Polished Copper plate creates a warmer decorative alternative to conventional white, chrome or brushed-steel sockets. Its contrasting black insert and rocker add definition while helping the accessory coordinate with other dark interior details.

This finish works particularly well alongside:

• Copper pendant lights
• Warm metallic handles and taps
• Black kitchen appliances
• Dark cabinetry
• Natural wood furniture
• Industrial-style décor
• Boutique hotel interiors
• Luxury residential developments

Matching Polished Copper switches, USB sockets and other accessories from the BG Evolve range can be used throughout a property to create a coordinated electrical-accessory scheme.

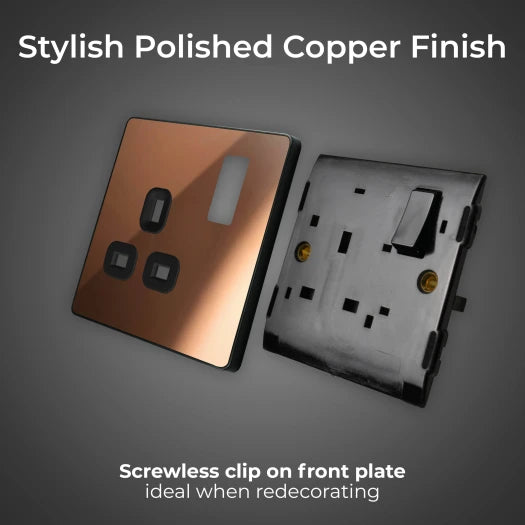

Slim Screwless Front Plate

The decorative front plate clips onto the installed socket base, concealing the mounting screws and creating a smooth, low-profile appearance.

It can be removed while the surrounding wall is painted or wallpapered and clipped back into position after decorating is complete. This helps protect the Polished Copper finish and avoids visible screw heads across the front of the accessory.

The electrical supply must always be safely isolated before the plate is removed or installation work begins.

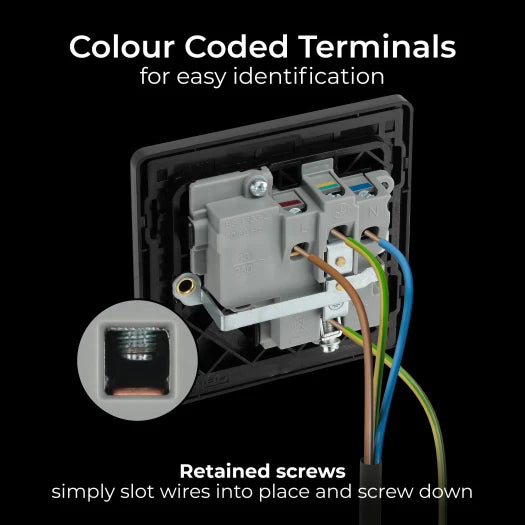

Angled Colour-Coded Terminals

Angled, in-line terminals provide clear access during installation, while printed colour identification helps electricians locate the live, neutral and earth connections.

Captive backed-out terminal screws are retained within the socket mechanism and supplied ready for conductor insertion, helping reduce installation time and preventing loose screws from being lost.

The official technical specification lists the following terminal capacities:

• Three 2.5mm² conductors
• Three 4mm² conductors
• Two 6mm² conductors

These capacities provide useful wiring space for suitable ring-final, radial and spur arrangements, subject to the circuit design and current wiring requirements.

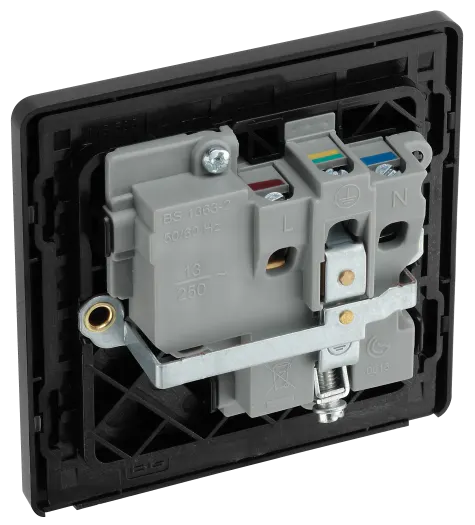

Twin Earth Terminals

The PCDCP21B-01 includes two earth terminals as standard. BG describes this arrangement as suitable for high-integrity earthing circuits where the installation design requires additional protective-conductor provision.

All protective conductors must be correctly sleeved and terminated. A metal mounting box must also be earthed where required by the installation.

Minimum 35mm Back Box

BG’s current individual product specification and official technical data sheet state that the socket requires a minimum 35mm single-gang mounting box.

Suitable mounting options can include:

• A 35mm single-gang metal back box
• A deeper recessed metal mounting box
• A compatible dry-lining box
• An appropriate surface-mounted pattress

A deeper box may provide additional room where several conductors enter the socket position.

Product Dimensions

The official technical drawing gives approximate dimensions of:

• Height: 86mm
• Width: 86mm
• Overall depth: 34mm
• Front-plate projection: approximately 5mm
• Mechanism depth behind the plate: approximately 25mm
• Horizontal fixing centres: 60.3mm
• Minimum mounting-box depth: 35mm

These standard UK single-gang dimensions allow the socket to coordinate neatly with other Evolve accessories installed throughout the room.

Suitable for Domestic and Commercial Interiors

The combination of practical power access and decorative styling makes the PCDCP21B-01 suitable for:

• Modern kitchens
• Bedrooms and dressing rooms
• Living rooms
• Dining areas
• Home offices
• Apartments and new-build homes
• Hotel bedrooms
• Restaurants and bars
• Reception areas
• Premium commercial refurbishments

Its Polished Copper finish is particularly effective where electrical accessories remain visible and form part of the overall interior design.
