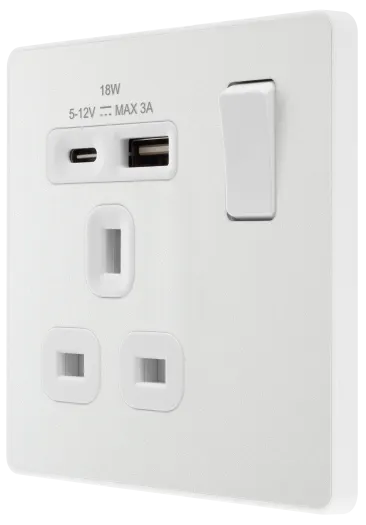

BG Evolve PCDCL21UAC18W-01 13A USB-A and USB-C Socket - Pearlescent White

BG Evolve PCDCL21UAC18W-01 Pearlescent White 13A USB Socket

Power a standard UK electrical appliance while charging compatible mobile devices with the BG Evolve PCDCL21UAC18W-01. This single switched 13A socket combines one Type G mains outlet with one USB-A port and one USB-C port, helping keep the main power socket available while phones, tablets and other USB-powered devices are charging.

The Pearlescent White finish and slim screwless faceplate create a modern decorative appearance suited to bedrooms, kitchens, home offices, hotel rooms, apartments and contemporary commercial interiors. The front plate clips on and off, allowing the electrical base to remain installed while decorating is completed.

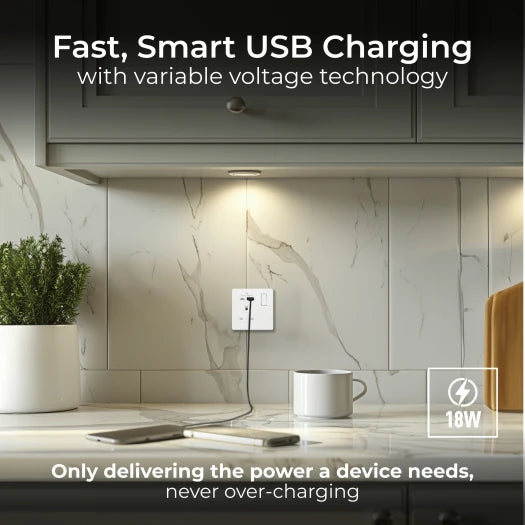

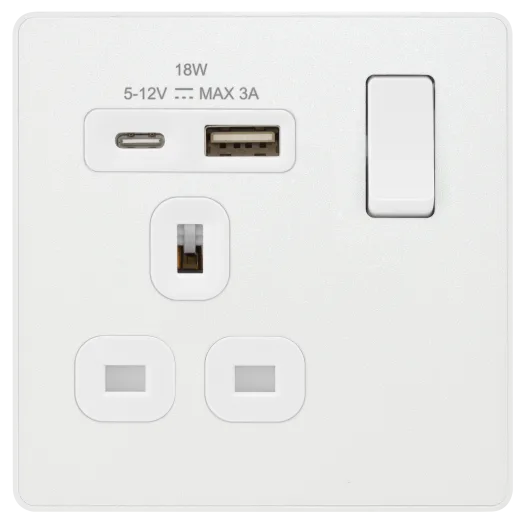

Integrated 18W USB Fast Charging

The integrated USB-A and USB-C ports provide variable-voltage charging up to 18W when a compatible device and charging cable are used.

Supported USB output options include:

• 5V at up to 3A
• 9V at up to 2A
• 12V at up to 1.5A
• USB-C Power Delivery 3.0
• Quick Charge 3.0
• Apple 2.4A
• Samsung Adaptive Fast Charging
• Huawei Fast Charge Protocol
• BC1.2 charging support

The USB-C outlet supports Power Delivery and Quick Charge protocols, while the USB-A connection supports Quick Charge and several brand-specific charging standards. Available USB power is shared when both ports are used simultaneously.

Smart Charging and Device Protection

BG’s AutoDetect technology identifies the connected USB device and adjusts the charging pattern to provide an appropriate voltage and current. The USB system enters standby mode when charging is complete and includes overcurrent, overvoltage and over-temperature protection.

BG states that a compatible mobile phone can receive approximately 50% charge in 30 minutes and charge up to 70% faster than conventional 5V charging. Actual charging speed depends on the connected device, battery condition, charging protocol and cable specification.

Single Switched 13A Power Socket

The mains outlet is rated at 13A, 240V AC and uses a single-pole switch with a minimum 3mm contact gap. The USB ports are integrated above the mains socket, allowing customers to charge USB devices without using a separate plug-in adaptor.

This arrangement is particularly useful beside beds, desks, kitchen worktops and hotel furniture where customers may need to power a lamp, computer or household appliance while charging a phone or tablet.

Pearlescent White Screwless Design

The Pearlescent White faceplate provides a softer decorative finish than a standard moulded-white socket. Its coordinated white inserts and concealed fixing screws create a clean appearance that can be matched with other switches, sockets and accessories from the BG Evolve range.

The removable clip-on plate is also practical during refurbishment because the base can be wired and secured before the decorative front is fitted after painting or wallpapering.

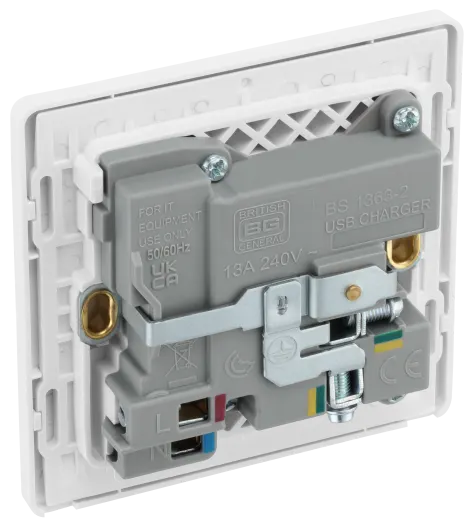

Installer-Friendly Terminals

Angled, colour-coded terminals help installers identify the line, neutral and earth connections. Captive backed-out screws are retained within the terminals, reducing the risk of losing screws during installation.

The line and neutral terminal capacity is listed as:

• Three 2.5mm² conductors
• Three 4mm² conductors
• Two 6mm² conductors

Twin earth terminals are fitted for suitable high-integrity earthing arrangements.

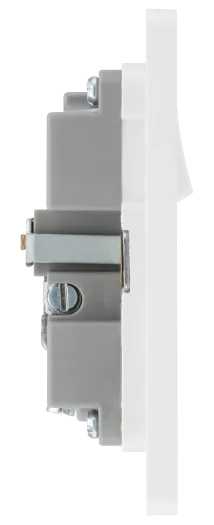

Dimensions and Back-Box Requirement

The BG Evolve PCDCL21UAC18W-01 measures approximately:

• Height: 86mm
• Width: 86mm
• Overall depth: 30mm
• Fixing centres: 60.3mm
• Minimum mounting-box depth: 35mm

A suitable 35mm or deeper mounting box should be used. Additional depth may make cable positioning easier where several conductors enter the socket box.
