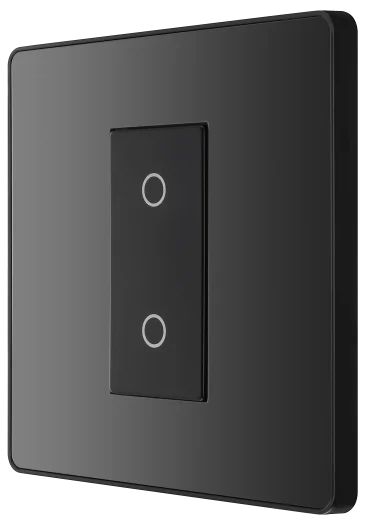

BG Evolve PCDBCTDM1B 2W Single Touch Dimmer Light Switch - Black Chrome

BG Evolve PCDBCTDM1B-01 Black Chrome Touch Dimmer Switch

Create smooth, modern lighting control with the BG Evolve PCDBCTDM1B-01 Black Chrome Master Touch Dimmer Switch. Combining intelligent trailing-edge dimming technology with a polished Black Chrome screwless plate, this single-gang dimmer offers a stylish alternative to conventional rotary controls.

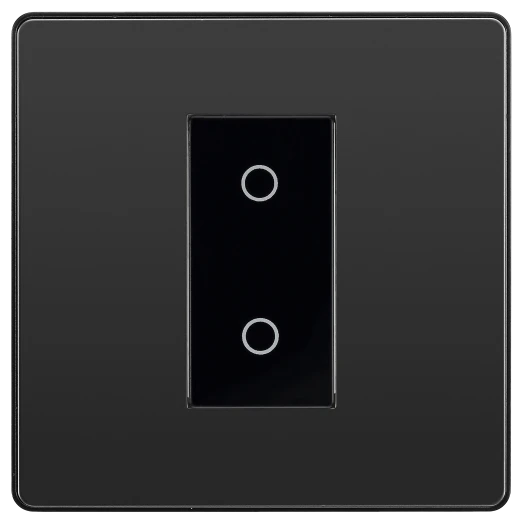

The touch-sensitive black centre panel allows users to switch compatible lighting on or off, increase or reduce brightness and quickly select minimum or maximum output. It is suitable for modern living rooms, bedrooms, dining rooms, kitchens, hotels, restaurants and premium commercial interiors.

Intuitive Touch Lighting Control

The dimmer has separate upper and lower touch-sensitive areas for straightforward control:

• Briefly touch either area to turn the lights on or off
• Press and hold the upper area to increase brightness
• Press and hold the lower area to reduce brightness
• Double-touch the upper area for maximum brightness
• Double-touch the lower area for minimum brightness
• Switch the lights back on at their previous brightness setting

When the lighting is off, holding the upper area starts illumination from the minimum level. Holding the lower area recalls the previous setting and begins adjusting the brightness.

Intelligent Trailing-Edge Dimming

The PCDBCTDM1B-01 uses intelligent trailing-edge technology, providing a low minimum load and improved compatibility with many modern dimmable lamps.

The supported load range per dimmer is:

• Dimmable LED: 5–100W
• Dimmable CFL: 5–100W
• Tungsten or incandescent: 5–200W
• Halogen: 20–200W
• Maximum compatible dimmable LED lamps: up to 10

The advertised 200W rating applies to suitable traditional lighting loads. Compatible dimmable LED circuits are limited to 100W, and every connected lamp must be suitable for trailing-edge dimming.

Master Touch Dimmer

The PCDBCTDM1B-01 is the master version of the BG Evolve touch dimmer.

For one-way operation, the master controls the lighting circuit independently from one wall position. Where the same light needs to be controlled and dimmed from two locations, the master must be paired with a compatible BG secondary touch dimmer.

The master cannot be combined with a conventional mechanical light switch, rotary dimmer or another master touch dimmer.

Soft-Start Operation

The built-in soft-start function gradually raises the connected lighting to the selected level when it is switched on.

BG states that the light reaches its setting in around one second, while the installation instructions specify approximately 1.2 seconds from zero to full output. This controlled start helps reduce sudden electrical and thermal stress on compatible lamps.

Overload Protection

Integrated overload protection helps prevent permanent dimmer failure if too many lamps or transformers are connected.

When an overload is detected, the dimmer can reduce the lighting output or stop operating until the connected load is corrected. Installers should still calculate the total wattage and number of lamps before fitting the dimmer.

Smooth and Quiet Dimming

BG specifies smooth dimming and silent operation, helping customers adjust the room atmosphere without mechanical noise from the control.

The low minimum-load capability is designed to support lower-wattage lamps and reduce flicker when compatible dimmable lamps and drivers are used. Final performance will depend on the quality, type and compatibility of the connected lighting equipment.

Premium Black Chrome Finish

The polished Black Chrome plate provides a dark metallic appearance that complements:

• Black light fittings
• Chrome handles and hardware
• Dark kitchen cabinetry
• Grey and neutral walls
• Contemporary furniture
• Modern hotel interiors
• Restaurants and bars
• Premium office spaces

The coordinated black touch panel creates a consistent appearance across the accessory. Matching Black Chrome sockets, switches, dimmers and fused connection units are available within the wider BG Evolve range.

Screwless Clip-On Plate

The decorative front plate clips onto the installed dimmer base and covers the fixing screws, producing a smooth finish without visible screw heads.

It can be removed while painting or wallpapering and clipped back into place after decorating is complete. This helps protect the Black Chrome surface during installation and refurbishment work.

BG’s instructions state that decorative products must have an appropriate earth connection between the front plate and mounting box. The electrical supply must always be safely isolated before installation or removal.

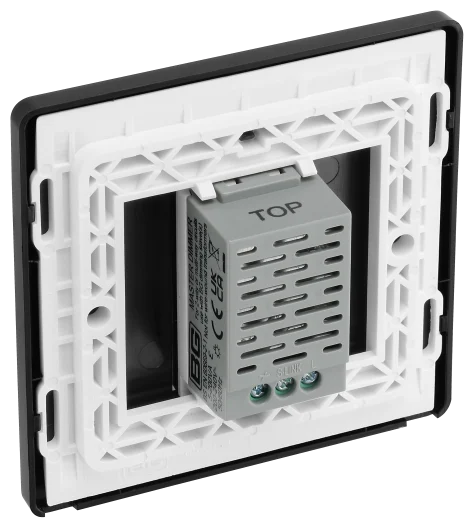

Captive Backed-Out Terminals

Captive terminal screws remain retained inside the dimmer mechanism and are supplied backed out ready for conductor insertion. This helps reduce installation time and prevents loose screws from being dropped or lost.

The official technical specification lists terminal capacity as:

• Three 1mm² conductors
• Two 1.5mm² conductors
• One 2.5mm² conductor

The product page specifically lists a maximum terminal capacity of one 2.5mm² conductor.

Dimensions and Back-Box Requirement

The PCDBCTDM1B-01 has approximate dimensions of:

• Height: 86mm
• Width: 86mm
• Overall depth: 26mm
• Front-plate projection: approximately 5mm
• Fixing centres: 60.3mm
• Minimum mounting-box depth: 25mm

A deeper box may provide easier conductor positioning, particularly where the master is connected to a secondary touch dimmer for two-way operation.

Suitable Applications

The touch dimmer is suitable for compatible dimmable lighting installations in:

• Living rooms
• Bedrooms
• Dining rooms
• Kitchens
• Home cinemas
• Hallways
• Apartments
• Hotel bedrooms
• Restaurants and bars
• Reception areas
• Premium commercial interiors

It is particularly useful where customers want to adjust lighting levels for working, entertaining, dining or creating a softer evening atmosphere.

Standards and 25-Year Guarantee

The PCDBCTDM1B-01 operates from a 220–240V AC, 50/60Hz supply and is manufactured to BS EN 60669-2-1. The official technical sheet lists Intertek licence number 1019, along with UKCA and CE conformity markings.

BG provides a 25-year manufacturer guarantee, subject to correct installation, compatible lighting loads, appropriate use and the manufacturer’s current guarantee conditions.
