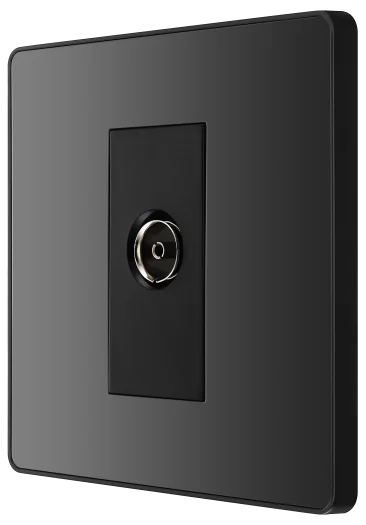

BG Evolve PCDBC60B Single Co-Ax TV and FM Socket - Black Chrome

BG Evolve PCDBC60B-01 Black Chrome TV and FM Co-Axial Socket

Create a neat, permanent connection point for compatible television or FM radio aerial equipment with the BG Evolve PCDBC60B-01 Black Chrome Single Co-Axial Socket.

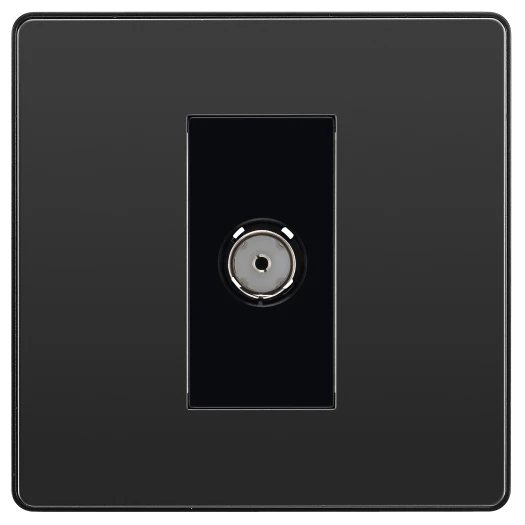

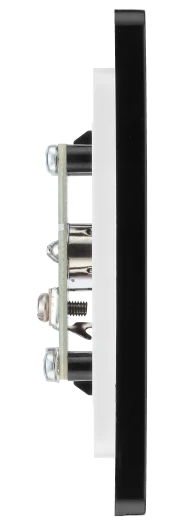

Designed for standard TV or FM co-axial aerial connections, this decorative wall outlet combines a single co-ax socket with a polished Black Chrome plate and coordinated black centre insert. Its low-profile screwless design makes it an attractive choice for modern living rooms, bedrooms, kitchens, apartments, hotels and commercial interiors.

Single TV or FM Aerial Connection

The PCDBC60B-01 provides one dedicated outlet for connecting compatible TV or FM equipment to an installed co-axial aerial cable.

Typical applications include:

• Connecting a television to a terrestrial aerial system
• Connecting an FM radio or compatible tuner
• Creating a permanent aerial point in a living room
• Adding a television connection to a bedroom
• Equipping apartments, hotels or student accommodation
• Replacing a basic white co-ax outlet during refurbishment

This model is specifically identified by BG as a single TV or FM co-axial aerial socket. It should not be confused with the manufacturer’s separate satellite, diplex, triplex or combined multimedia outlet configurations.

Direct Co-Axial Cable Termination

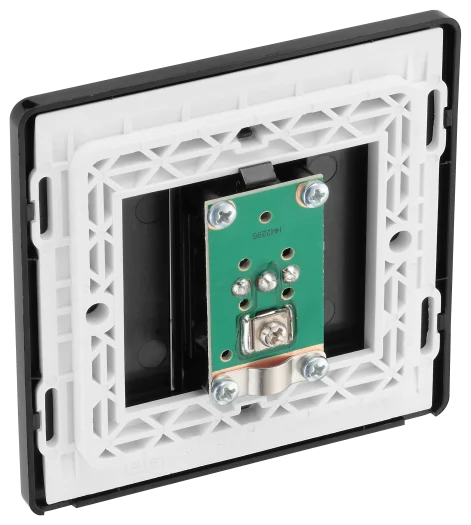

The aerial cable connects directly to the rear of the socket using a screw-terminal arrangement.

BG’s installation guidance for a single co-axial outlet instructs the installer to prepare the cable by removing approximately 16mm of outer sheath, folding back the screening braid and removing around 9mm of inner insulation. The centre conductor is inserted into the terminal connection while the cable screen is secured separately.

Correct cable preparation is important because loose strands of the screening braid must not touch the inner conductor. Contact between the braid and centre core may short-circuit the aerial signal and cause poor reception.

Designed for TV and FM Signals

The PCDBC60B-01 can form part of an appropriate domestic or commercial aerial distribution system for compatible television and FM radio signals.

Reception quality will depend on the complete installation, including:

• Aerial type and positioning
• Signal strength in the local area
• Condition and specification of the co-axial cable
• Cable length and routing
• Splitters, amplifiers or distribution equipment
• Quality of the cable termination
• Connected television or radio equipment

The socket provides the final wall connection but does not amplify, boost or generate an aerial signal.
