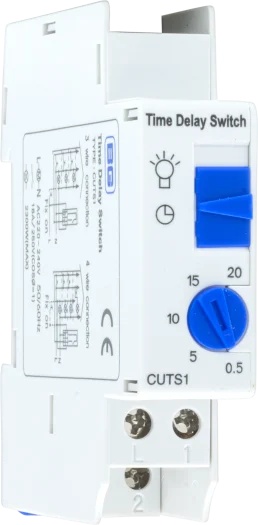

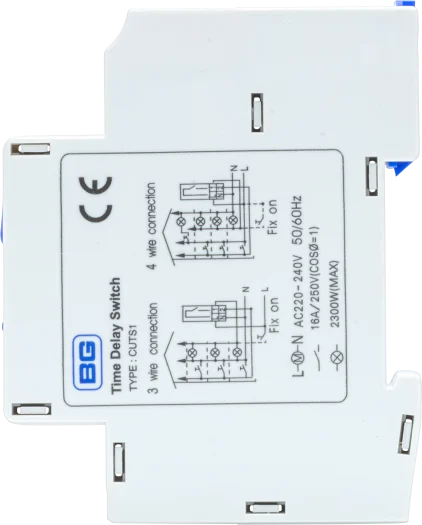

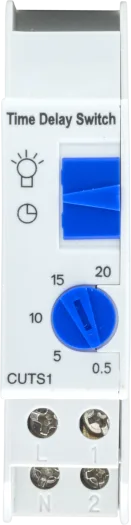

BG CUTS1 16A DIN Rail Time Delay Switch with Manual Override

BG CUTS1 16A DIN Rail Time Delay Switch with Manual Override

SKU CUTS1
£15.10 - £15.10
£15.10 inc VAT £12.58 exc VAT
£15.10 - £15.10
£15.10 inc VAT £12.58 exc VAT inc VAT £12.58 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

The BG CUTS1-01 16A time-delay switch provides automatic delayed switch-off control for suitable lighting circuits. Its adjustable countdown can be set from approximately 30 seconds to 20 minutes, allowing lights to remain on for a chosen period before switching off automatically. This makes it particularly useful for staircases, corridors, communal areas, utility spaces and other locations where lighting is only required temporarily.

Designed for installation inside compatible BG Fortress consumer units and enclosures, the timer occupies only one DIN-rail module. Its compact design helps preserve valuable consumer-unit space while adding practical timed lighting control to domestic, commercial and communal electrical installations.

The front-mounted adjustment dial allows the delay period to be selected to suit the installation. A manual override function also provides direct control when permanent operation is required, making the device more flexible than a fixed-duration lighting timer. The product page lists ON, OFF and permanent-ON operating states.

FAQ's

What does the BG CUTS1-01 do?

It delays a suitable lighting circuit from switching off. After activation, the connected lighting remains on for the selected period and then switches off automatically.

What timing range does it provide?

The adjustable countdown period runs from approximately 30 seconds to 20 minutes.

Does it have a manual override?

Yes. The CUTS1-01 includes manual override control, and BG lists ON, OFF and permanent-ON switch states.

How much consumer-unit space does it require?

It occupies one DIN-rail module, making it suitable for installations where available enclosure space is limited.

What is its switching rating?

BG lists a 16A switching capability. The technical sheet specifies a 16A resistive-load capacity and a 4A inductive-load capacity.

Can it be used with any consumer unit?

BG specifies the CUTS1-01 for use with compatible BG Fortress consumer units and enclosures. Compatibility should be confirmed before installation.

What warranty is included?

BG Circuit Protection products are guaranteed for ten years against faulty materials and workmanship, subject to BG’s warranty conditions.
