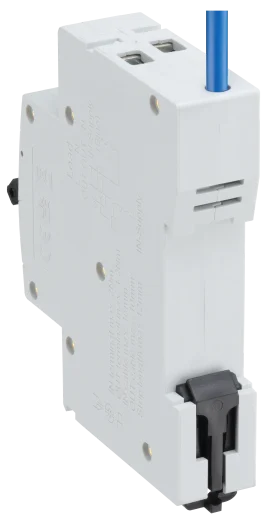

BG CUCRB10A 10A 30mA 6kA Type-A B-Curve 1 Pole Compact RCBO

BG CUCRB10A 10A 30mA 6kA Type-A B-Curve 1 Pole Compact RCBO

SKU CUCRB10A
£10.55 - £10.55
£10.55 inc VAT £8.79 exc VAT
£10.55 - £10.55
£10.55 inc VAT £8.79 exc VAT inc VAT £8.79 exc VAT
Availability:
77 in stock, ready to be shipped

Estimated delivery time: Next Working Day

Description

The BG RCBO Electrical CUCRB10A-01 Compact RCBO is a high-performance 10A Type A residual current circuit breaker with overload protection, designed to deliver reliable and safe circuit protection in domestic and light commercial installations. Combining RCD and MCB protection in a single compact unit, this RCBO helps prevent electric shock, overloads, and short circuits while saving valuable space in the consumer unit.

Specification
  • Max Current Rating - 10A
  • Standard(s) - IEC/EN 61009-1
  • Operating Voltage - 230V AC 50 Hz
  • Breaking Capacity - 6000A
  • Rated Peak Withstand Voltage - 4kV
  • RCD Type - Type A
  • Rated Tripping Current - 30mA
  • Number of Poles - 1P+N (1 Module)
  • Terminal Capacity - 4 - 10mm²
  • Terminal Torque - L/in 2Nm, L & N out 1.2Nm
  • Endurance Operations - Electrical - 10,000,
  • Mechanical - 20,000
  • BG CUCRB10A 10A 30mA 6kA Type-A B-Curve 1
  • Pole Compact RCBO

Datasheet
