BG CPRSD432AG AC 32A 4 Pole IP65 Rotary Isolator - Anthracite Grey

BG CPRSD432AG AC 32A 4 Pole IP65 Rotary Isolator - Anthracite Grey

SKU CPRSD432AG
£23.40 - £23.40
£23.40 inc VAT £19.50 exc VAT
£23.40 - £23.40
£23.40 inc VAT £19.50 exc VAT inc VAT £19.50 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

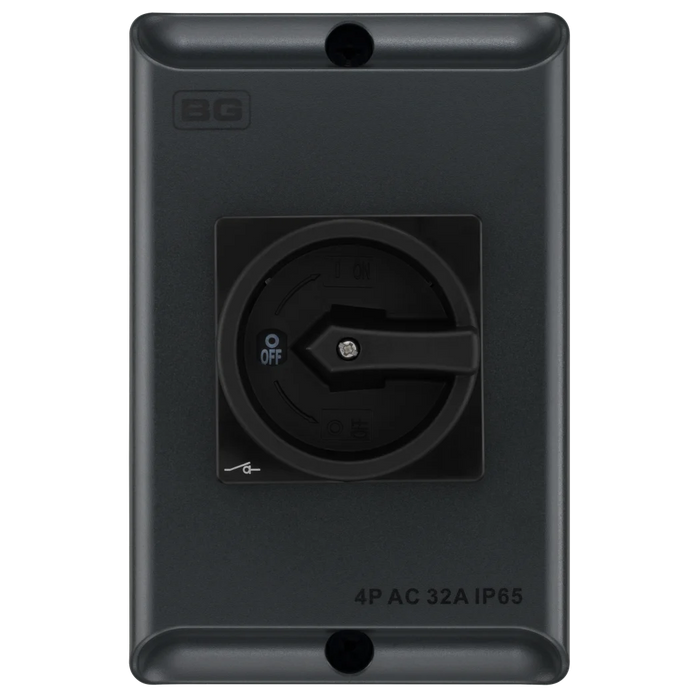

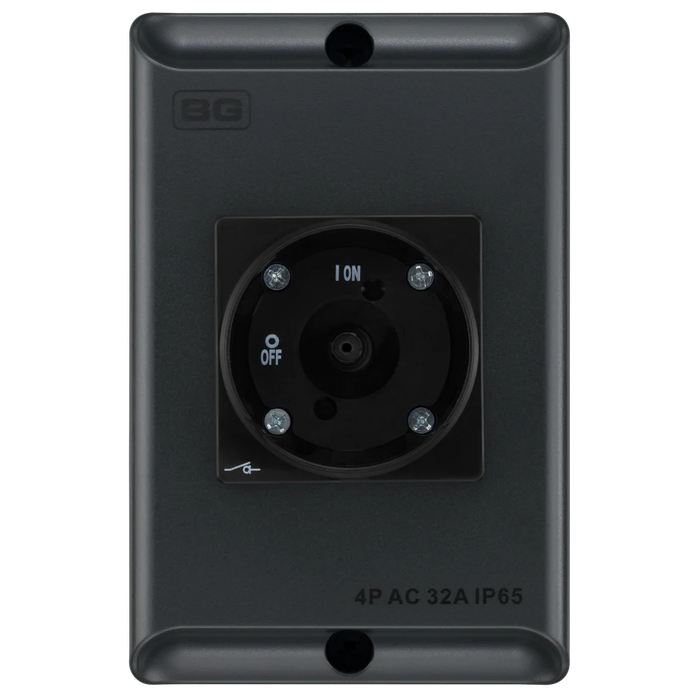

BG CPRSD432AG-01 32A 4 Pole IP65 Rotary Switch Isolator – Anthracite Grey

The BG CPRSD432AG-01 32A 4 Pole Rotary Switch Isolator provides a secure, weather-resistant method of locally isolating electrical equipment in domestic, commercial and light industrial installations.

Finished in a modern anthracite grey RAL7016 enclosure, it is particularly well suited to installations where a traditional light-grey industrial isolator would stand out against contemporary exterior walls, EV charging equipment or other modern outdoor electrical products. BG specifically designed the colour to complement installations such as its Sync Energy EV charging equipment.

With an IP65 weatherproof rating, the enclosure protects against dust and water ingress, making the isolator suitable for exposed exterior locations. Its tough polycarbonate construction also carries an IK10 impact-resistance rating, helping provide additional durability in demanding outdoor and commercial environments.



Specification

The BG CPRSD432AG-01 is a 32A 4 pole IP65 outdoor rotary isolator switch designed to provide safe local electrical isolation for domestic, commercial and light industrial equipment. Its 3+N configuration is suitable for single- and three-phase installations, including EV chargers, air source heat pumps, hot tubs and other externally installed electrical equipment.

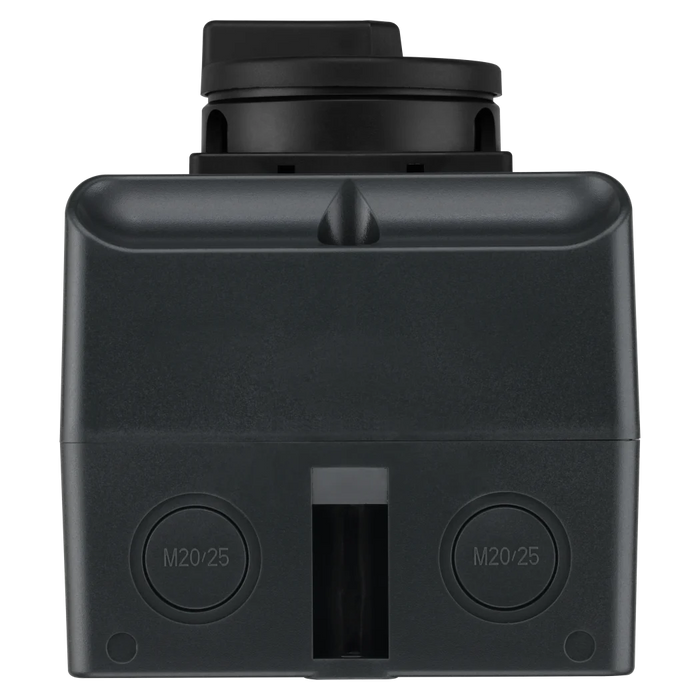

It features a weatherproof IP65 anthracite grey RAL7016 polycarbonate enclosure, an IK10 impact rating, padlockable OFF position, lid safety interlock, earth terminals and four M20/M25 cable-entry knockouts. The isolator is rated to 11kW AC-23A, accepts cables up to 16mm², operates from 230–415V, and complies with IEC 60947-3.

For customers searching for a 32A EV charger isolator, 4 pole heat pump isolator, anthracite outdoor rotary isolator or IP65 three-phase isolation switch, the CPRSD432AG-01 combines weather protection, safe lock-off capability and a modern dark-grey finish in one purpose-built enclosure.
