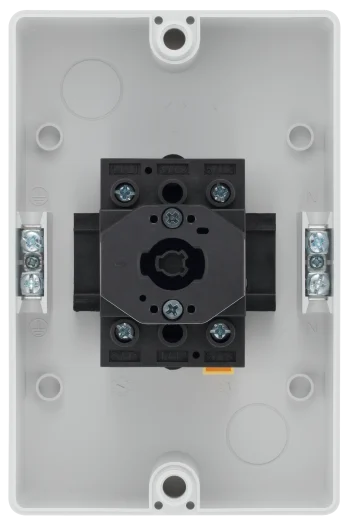

BG CPRSD232 32A 2 Pole AC IP65 Rotary Isolator Switch, Light Grey

The BG CPRSD232-01 32A two-pole rotary isolator provides safe, reliable isolation and switching of suitable single-phase electrical equipment in commercial, residential and light-industrial installations. Its durable insulated enclosure and IP65 weatherproof rating make it suitable for demanding indoor or outdoor locations when correctly installed.

Designed as a 32A AC rotary switch disconnector, the CPRSD232-01 features a highly visible red and yellow operating handle that clearly identifies its ON and OFF positions. The handle can be secured with a padlock in the OFF position, helping prevent unauthorised or accidental reconnection while electrical equipment is being inspected, serviced or maintained.

For additional installation safety, the switch is mechanically interlocked with the enclosure lid, preventing the cover from being opened while the isolator is switched on. Captive cover screws remain attached during installation and maintenance, while included earth terminals support a secure and professional electrical connection.

Four M20/25 cable-entry knockouts, positioned at the top and bottom of the enclosure, provide flexible cable-routing options. The switch also includes captive, backed-out screw terminals to help electricians complete cable termination more quickly and reduce the risk of losing terminal screws.

The BG 32A double-pole rotary isolator operates at 230V AC and offers IP65 ingress protection, an IK05 impact rating and a light-grey insulated enclosure. Manufactured and tested to BS EN 60947-3, it is an excellent choice for electricians searching for a weatherproof rotary isolator, padlockable isolation switch, 32A switch disconnector, two-pole industrial isolator or outdoor AC isolation switch. It is backed by BG Electrical’s ten-year warranty.
