BG CFUEV5RDA IP20 EV Consumer Unit – 100A Main Switch, 40A Type A RCBO & Type 2 SPD

BG CFUEV5RDA IP20 EV Consumer Unit – 100A Main Switch, 40A Type A RCBO & Type 2 SPD

SKU CFUEV5RDA
£54.99 - £54.99
£54.99 inc VAT £45.83 exc VAT
£54.99 - £54.99
£54.99 inc VAT £45.83 exc VAT inc VAT £45.83 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

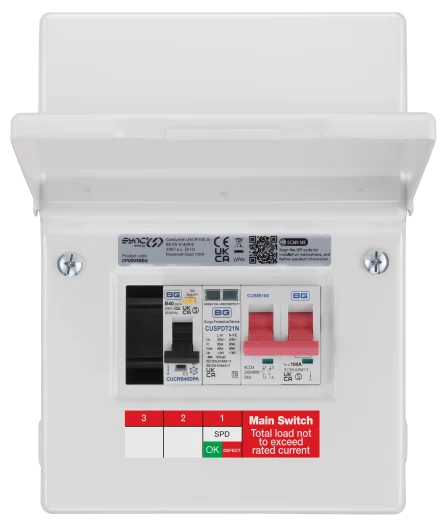

BG Sync Energy CFUEV5RDA-01 White IP20 EV Charger Consumer Unit with RCBO & Surge Protection

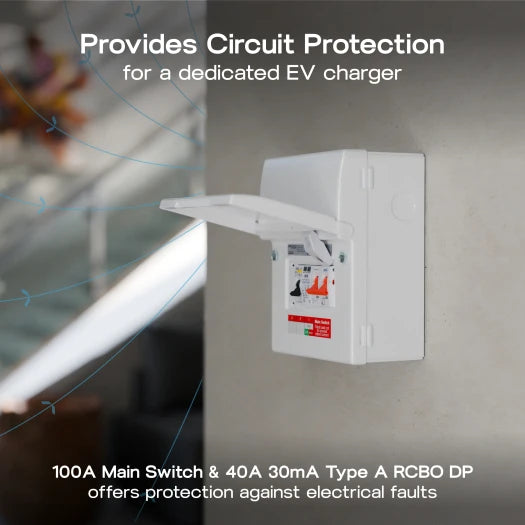

Provide dedicated electrical protection for a compatible indoor electric vehicle charging installation with the BG Sync Energy CFUEV5RDA-01 White IP20 EV Consumer Unit. Specifically designed for EV applications, this compact 5-module metal enclosure comes populated with a 100A main switch, 40A 30mA Type A double-pole RCBO and Type 2 surge protection device, providing key circuit-protection components within one purpose-designed enclosure.

The CFUEV5RDA-01 is particularly relevant for customers and installers searching for an EV charger consumer unit, indoor EV consumer unit, EV charger RCBO enclosure, 40A EV charger protection unit, Type A RCBO EV charger consumer unit, EV consumer unit with SPD or electric car charger fuse box.

40A 30mA Type A Double-Pole RCBO

A major feature of the CFUEV5RDA-01 is its supplied 40A 30mA Type A double-pole RCBO. This combines residual-current and overcurrent protection within one protective device, making this model particularly relevant for EV installations where a dedicated RCBO-based protection arrangement is required.

The 30mA rated sensitivity and Type A configuration are confirmed by BG, while the product page also lists an electro-mechanical residual-current mechanism and a trip speed of less than 0.1 seconds.

High-value search phrases for this feature include 40A EV charger RCBO, Type A RCBO for EV charging, double pole EV RCBO, 30mA EV charger protection and EV consumer unit with RCBO.

100A Main Switch

The enclosure also contains a 100A main switch, providing a dedicated means of isolating the EV protection unit within a correctly designed installation. BG lists the maximum enclosure load as 100A.

This adds useful search relevance for terms including 100A EV consumer unit, EV charger consumer unit with main switch, 100A EV isolator consumer unit and EV circuit protection with main switch.

Key Product Features

  • BG / Sync Energy EV circuit protection
  • Product code: CFUEV5RDA-01
  • Dedicated EV consumer unit
  • IP20 – internal use
  • Gloss White RAL 9016

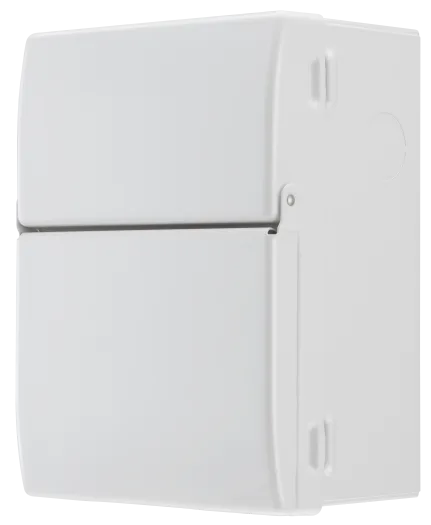

  • 1mm ST16 steel construction
  • 5 modules / 5 ways
  • 100A main switch
  • 40A 30mA Type A double-pole RCBO

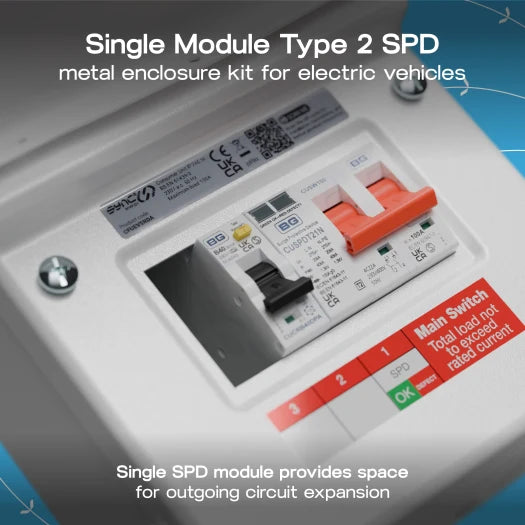

  • Type 2 SPD
  • Intended where EV charger supply cable has no mechanical protection

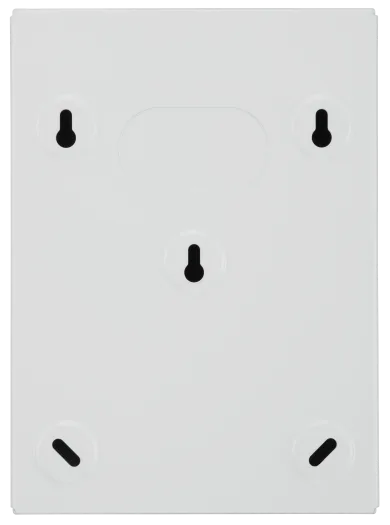

  • Surface-mounted enclosure
  • Integrated spirit level
  • Removable raised DIN rail
  • Captive terminal screws
  • Backed-out terminal screws
  • 9 cable-entry knockouts

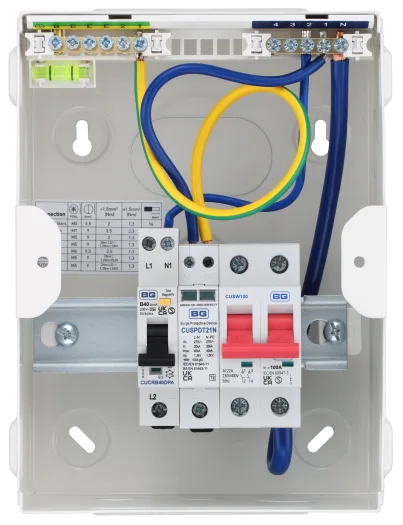

  • Neutral and earth terminals
  • Busbar and cover blanks supplied
  • Approx. 233 × 172 × 116mm
  • Operating temperature: -25°C to +40°C
  • BS/EN 61439-3 type tested
  • BS 7671 18th Edition Amendment 3 compliance stated by BG
  • 10-year manufacturer warranty
Specification

The BG Sync Energy CFUEV5RDA-01 is a white IP20 5-module indoor EV consumer unit supplied with a 100A main switch, 40A 30mA Type A double-pole RCBO and Type 2 SPD. BG specifies it for EV charger installations where the charger supply cable does not have mechanical protection.

FAQ's

Is CFUEV5RDA-01 an EV charger?

No. It is the circuit-protection consumer unit used as part of an EV charger installation. The EV charging point itself is separate.

What RCBO is included?

BG supplies a 40A 30mA Type A double-pole RCBO.

Does it include a main switch?

Yes. The enclosure contains a 100A main switch.

Does CFUEV5RDA-01 include surge protection?

Yes. A Type 2 SPD is supplied.

Is CFUEV5RDA-01 weatherproof?

No. It has an IP20 rating and BG specifies it as an internal-use EV consumer unit. It should not be marketed as an outdoor/weatherproof enclosure.

When should CFUEV5RDA-01 be used?

BG specifically states that this configuration is intended for use where the EV charger supply cable does not have mechanical protection.

What material is the enclosure?

The technical specification lists 1mm ST16 steel with UV-stable metal construction.

What colour is it?

It is Gloss White RAL 9016.

How many modules does it have?

It is a 5-module / 5-way enclosure.

What are the dimensions?

The technical drawing gives approximate dimensions of 233mm high × 172mm wide × 116mm deep.

Does it have an integrated spirit level?

Yes. BG lists an integrated spirit level to assist with installation.

How many cable entries are provided?

BG lists 9 cable-entry knockouts.

What standard does the enclosure meet?

BG's technical sheet states that the IP20 EV consumer unit is type-tested to BS/EN 61439-3 and complies with BS 7671 18th Edition Amendment 3.

What warranty does CFUEV5RDA-01 have?

BG specifies a 10-year manufacturer warranty for the IP20 EV consumer-unit range.

What is the key SEO difference from the IP65 EV units?

The biggest search distinction is “indoor IP20 EV consumer unit”. CFUEV5RDA-01 should target indoor EV charger consumer unit, 40A Type A RCBO EV protection, garage EV charger consumer unit and EV consumer unit with Type 2 SPD, rather than outdoor/weatherproof terms.
