Bell 11604 9/14/18W AQUA1 LED Bulkhead - Sensor Dim CCT White

Bell 11604 9/14/18W AQUA1 LED Bulkhead - Sensor Dim CCT White

SKU 11604
£48.38 - £48.38
£48.38 inc VAT £40.32 exc VAT
£48.38 - £48.38
£48.38 inc VAT £40.32 exc VAT inc VAT £40.32 exc VAT

Estimated delivery time: Next working day

Description

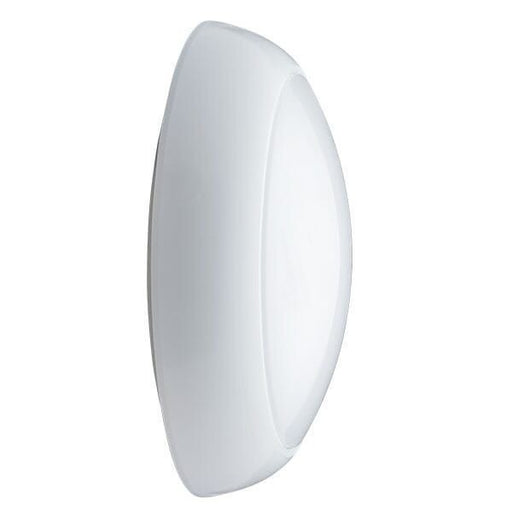

BELL Lighting 11604 Aqua1 9W/14W/18W LED CCT White Bulkhead with Sensor Dim

The BELL Lighting 11604 Aqua1 LED Bulkhead is a versatile, energy-efficient lighting solution designed for commercial, residential and public-sector applications. Featuring selectable wattage settings of 9W, 14W and 18W, alongside CCT switching between 3000K, 4000K and 6000K, this adaptable bulkhead enables contractors to configure both light output and colour temperature on-site, reducing stock requirements and simplifying project specification.

Equipped with an integrated microwave sensor and corridor dimming functionality, the Aqua1 automatically adjusts lighting levels based on occupancy, helping reduce energy consumption in communal areas, corridors, stairwells and circulation spaces. This intelligent control functionality makes it an excellent choice for apartment blocks, educational facilities, healthcare buildings and commercial premises seeking improved energy efficiency.

The fitting features a high-transmission frosted diffuser for uniform light distribution and an IP65-rated sealed enclosure that protects against dust and water ingress. Combined with an IK10 impact resistance rating, the BELL 11604 is engineered to perform reliably in demanding indoor and outdoor environments.

Specification
  • Product Wattage - 9/14/18
  • Colour Temp (K) - 3/4/6000
  • Lumens (lm) - 900/1300/1650
  • Life Hours - 50,000
  • CRI (Ra) - 80
  • Guarantee - 3 Years
  • Switching Cycles - 30,000
  • Frequency (Hz) - 50
  • Energy Consumption (kWh/1000h) - 18
  • IP Rating - IP65

Datasheet

Product Dimensions
  • Height (mm) - 110
  • Diameter (mm) - 335
FAQ's

Is the BELL 11604 suitable for communal area lighting projects?

Yes. The Aqua1 has been specifically designed for communal areas, apartment blocks, stairwells, corridors and access routes where automatic lighting control and energy efficiency are important requirements. The integrated microwave sensor and corridor dimming functionality help reduce unnecessary energy consumption.

What is the benefit of corridor dimming on the BELL 11604?

Corridor dimming allows the fitting to operate at a reduced light level when no occupancy is detected and automatically increase to full output when movement is sensed. This can significantly reduce energy costs while maintaining safety and compliance in circulation areas.

Is the colour temperature selectable?

Yes. The BELL 11604 features integrated CCT switching, allowing installers to choose between 3000K warm white, 4000K cool white or 6000K daylight outputs during installation.

Can the BELL 11604 replace traditional 2D bulkhead fittings?

Yes. The Aqua1 is designed as a direct replacement for conventional 28W 2D bulkheads, providing lower energy consumption, longer lifespan and reduced maintenance requirements.

What cable entry options are available?

The fitting supports rear, side and BESA box cable entry, providing flexibility for both surface-mounted installations and retrofit applications where existing wiring arrangements need to be retaine.
