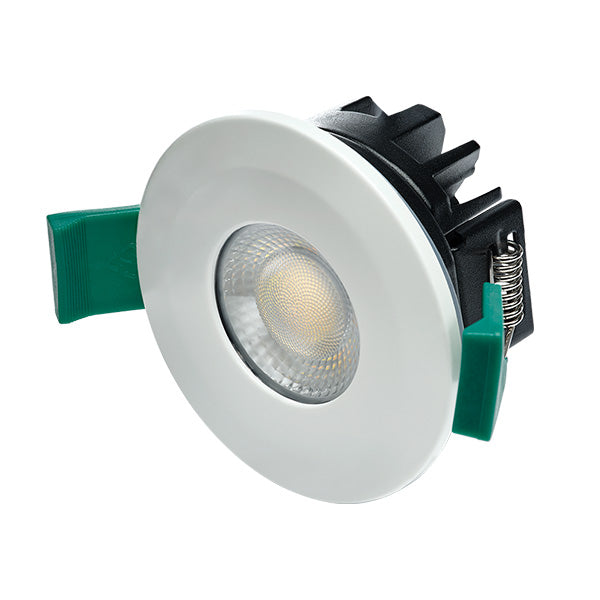

Bell 10531 Firestay 10W LED 1-10V Downlight - 2 Wire - 4CCT

• Height (mm) 47
• Width (mm) 82
• Depth (mm) 47
• Diameter (mm) 82
• Cut out (mm) 68-70
• Life Hours 50000
• Volts (V)DC 24
• VFrequency (Hz) 50/60
• Wattage (W) 10
• Energy Consumption (kWh/1000h) 10
• Lumen output (lm) 830-920
• Lumens per Watt (lm/W) 83-92
• Colour Temperature (K) 2700/3000/4000/6000
• CRI (Ra)80Beam Angle 60°
• Switching Cycles 100000
• IK RatingIK07IP Rating IP65





What is the BELL 10531 Firestay downlight?

The BELL 10531 Firestay is a 10W integrated LED downlight featuring 1-10V dimming, four selectable colour temperatures and IP65 protection. It is designed for both commercial and residential lighting projects.

What colour temperatures can I select on the BELL 10531?

The BELL 10531 is a 4CCT selectable downlight, offering 2700K, 3000K, 4000K and 6000K colour temperatures. This allows the preferred light colour to be selected to suit the room or application without purchasing different downlights.

What is the difference between 2700K, 3000K, 4000K and 6000K?

2700K produces a very warm, relaxing white light. 3000K provides a conventional warm white appearance. 4000K produces a cleaner neutral/cool white popular in kitchens and commercial spaces, while 6000K creates a much cooler daylight-style white light.

Is the BELL 10531 dimmable?

Yes. The BELL 10531 is specifically designed for 1-10V dimming and should be used with a compatible 1-10V lighting control system.

Can I use the BELL 10531 with a normal household dimmer switch?

The 10531 uses 1-10V dimming, so it should not automatically be treated as compatible with a standard domestic phase-cut dimmer. A compatible 1-10V control system should be used in accordance with BELL's installation requirements.

How bright is the BELL 10531?

The 10W integrated LED provides approximately 830 to 920 lumens, depending on the selected colour temperature, with an efficacy of up to 92 lumens per watt.

What cut-out size does the BELL 10531 need?

The BELL 10531 requires a ceiling cut-out of approximately 68–70mm. The existing ceiling opening should always be measured before replacing another downlight.

What is the diameter of the BELL 10531?

The downlight has an overall diameter of 82mm, helping the bezel cover the specified 68–70mm ceiling opening.

Is the BELL 10531 suitable for shallow ceiling voids?

The fitting is only 47mm high, making it a compact downlight option for installations where ceiling void depth may be restricted. Required installation clearances should still be checked before fitting.

Is the BELL 10531 IP65 rated?

Yes. The BELL Firestay 10531 has an IP65 rating, providing protection against dust and water jets when correctly installed.

Can the BELL 10531 be used in a bathroom?

Its IP65 rating makes the 10531 suitable for appropriate bathroom applications, provided it is installed in the correct bathroom zone and in accordance with current electrical regulations and BELL's installation instructions.

Is the BELL 10531 suitable for kitchens?

Yes. The combination of high light output, wide 60° beam and selectable colour temperature makes the BELL 10531 suitable for many kitchen lighting projects. 4000K is a particularly popular choice where a cleaner, neutral white appearance is preferred.

What beam angle does the BELL 10531 have?

The BELL 10531 has a 60° beam angle, providing a relatively wide spread of light for general room and commercial illumination.

How long does the BELL Firestay 10531 last?

BELL specifies a 50,000-hour rated life together with up to 100,000 switching cycles, helping reduce maintenance requirements compared with shorter-life lighting technologies.

What does IK07 mean on the BELL 10531?

The IK07 rating indicates a defined level of resistance to mechanical impact, adding durability for commercial and residential installations.
