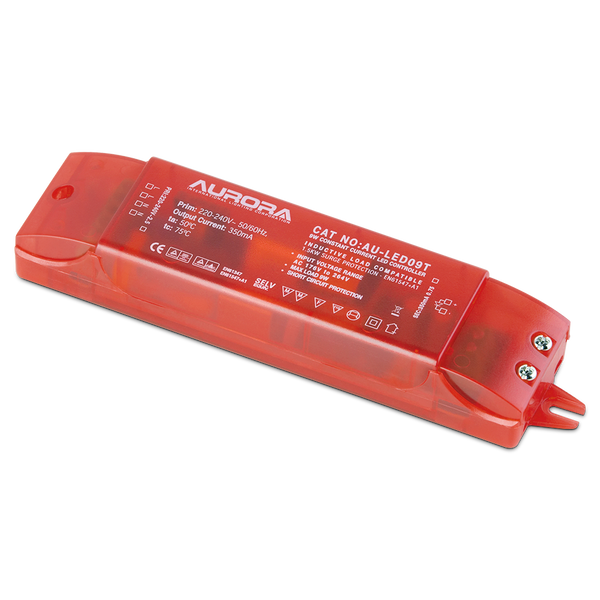

What is the Aurora AU-LED09T?
The Aurora AU-LED09T is a non-dimmable constant-current LED driver designed for compatible LED fittings requiring a 350mA constant-current supply.
Aurora currently markets the driver as a 1-9W model with a maximum nominal power of 9W.
What output does the Aurora AU-LED09T provide?
The AU-LED09T provides a fixed 350mA constant-current output.
This means it should only be connected to LEDs or luminaires specifically designed to operate from a 350mA constant-current driver.
Is the Aurora AU-LED09T a 350mA driver?
Yes.
The AU-LED09T is a 350mA constant-current LED driver.
This is one of the most important specifications to match when buying it as a replacement driver.
What wattage is the Aurora AU-LED09T?
Aurora's current product title describes the AU-LED09T as a 1-9W LED driver, with technical data listing a maximum nominal power of 9W.
The connected compatible LED load must remain within the driver's permitted operating range.
Is the AU-LED09T constant current or constant voltage?
The AU-LED09T is a constant-current LED driver.
It regulates the output current at 350mA rather than providing a fixed 12V or 24V output.
Is the Aurora AU-LED09T dimmable?
No.
The Aurora AU-LED09T is non-dimmable and should not be connected to a standard lighting dimmer.
Can I use the AU-LED09T with a dimmer switch?
No.
Because the AU-LED09T is specifically designed as a non-dimmable LED driver, it should not be used with a conventional dimmer unless Aurora explicitly specifies compatibility with a particular control system.
Can the Aurora AU-LED09T replace my old LED driver?
Potentially, but the specifications must match.
Check that the existing LED fitting requires:
- 350mA constant current
- Compatible wattage
- Non-dimmable operation
- Series wiring
- Compatible mains input
- Suitable physical dimensions
Never choose a replacement LED driver using wattage alone.
Can AU-LED09T replace any 350mA LED driver?
Not automatically.
Although 350mA output is an important compatibility requirement, you must also check the required power range, output characteristics, dimming method, wiring arrangement and physical installation requirements.
Can I use AU-LED09T with a 12V LED light?
Normally no.
A standard 12V LED fitting requires a 12V constant-voltage driver, while the AU-LED09T provides a 350mA constant-current output.
They are different types of LED power supply.
Can I use AU-LED09T with 24V LED strip?
No.
Most 24V LED strip requires a 24V constant-voltage power supply.
The AU-LED09T is a 350mA constant-current driver and is not intended as a standard LED strip driver.
Can the AU-LED09T power 700mA LEDs?
No.
The AU-LED09T provides 350mA, so it should not be used to power an LED fitting designed for a 700mA constant-current supply.
A suitable 700mA driver should be selected instead.
