Astro Lighting 1201005 Terra Round 28 LED Brushed Stainless Steel Light
Estimated delivery time: Estimated delivery tomorrow*
Description
Astro Terra Round 28 LED IP65 Recessed Ground Light – 1201005
Create discreet exterior, bathroom and architectural marker lighting with the Astro Terra Round 28 LED 1201005. Finished in Brushed Stainless Steel, this compact recessed LED fitting can be installed in the ground, wall or ceiling to provide focused warm-white illumination without the visual bulk of a conventional surface-mounted light.
The Terra Round 28 is suitable for subtle lighting around pathways, steps, decking, exterior walls, bathroom areas and architectural features. Its small 28mm circular face helps the fitting blend neatly into the surrounding surface, making it ideal for modern residential, hospitality and commercial lighting projects.
Astro specifically advises that the Terra Round 28 should not be driven over, so it must not be installed where cars or other vehicles may pass across the fitting.

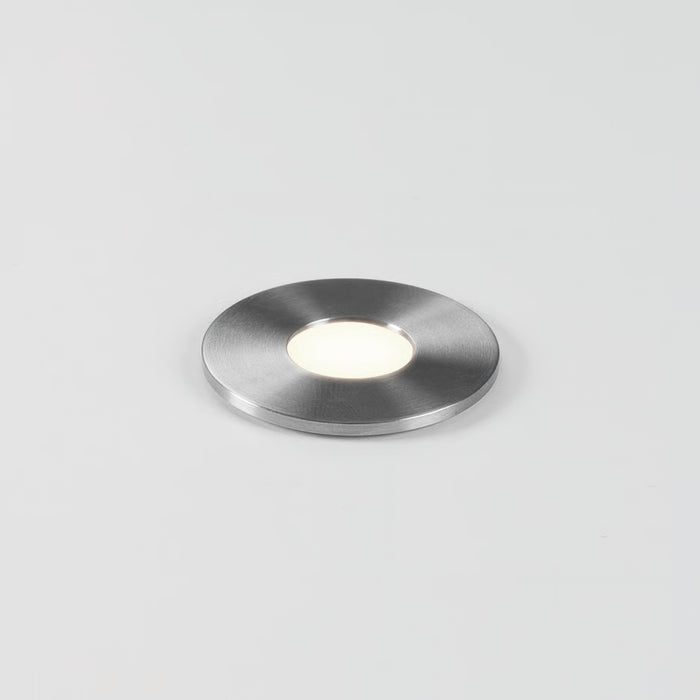

Brushed Stainless Steel Recessed Light
Product code 1201005 is supplied in a Brushed Stainless Steel finish. The metallic surface works particularly well with modern exterior materials, bathroom fittings, stone paving, timber decking, tiled walls and contemporary architectural finishes.
The official technical datasheet identifies aluminium as the main structural material, combined with the product’s Brushed Stainless Steel external finish. The compact construction makes the light suitable for locations where a larger ground light would be too visually prominent.
Integrated 1W LED
The Astro Terra Round 28 contains an integral 1W high-powered LED, so no separate replacement lamp or bulb is required.
The LED produces approximately 53 lumens, providing controlled accent and marker illumination. The relatively low output is designed for highlighting routes, surfaces and architectural details rather than acting as the main source of general exterior or bathroom lighting.
Warm-White 3000K Output
Product code 1201005 produces a warm-white 3000K colour temperature. This provides a clean but comfortable appearance suitable for residential gardens, pathways, exterior walls, hotel grounds and contemporary bathrooms.
The integrated LED has a CRI 80 colour-rendering rating and three-step MacAdam colour consistency, helping multiple Terra fittings provide a consistent light appearance when installed together.
Focused 53.5-Degree Beam
The Terra Round 28 has a beam angle of approximately 53.5 degrees. This provides a controlled spread of light suitable for low-level orientation lighting, surface highlighting and architectural accents.
When several fittings are installed at regular intervals, the medium-width beam can help create a coordinated line of light along pathways, steps, corridors or surrounding walls.
IP65 Exterior and Bathroom Protection
The Astro 1201005 has an IP65 rating, meaning it is dust-tight and protected against water jets.

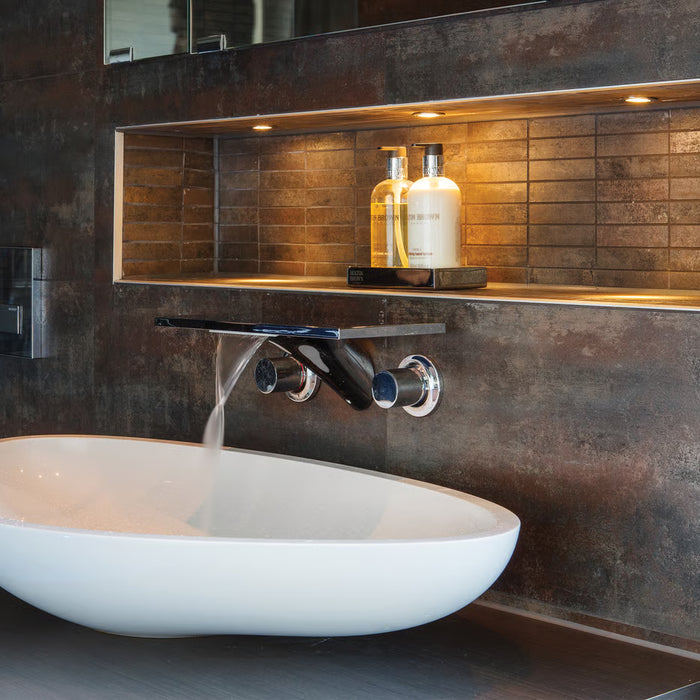

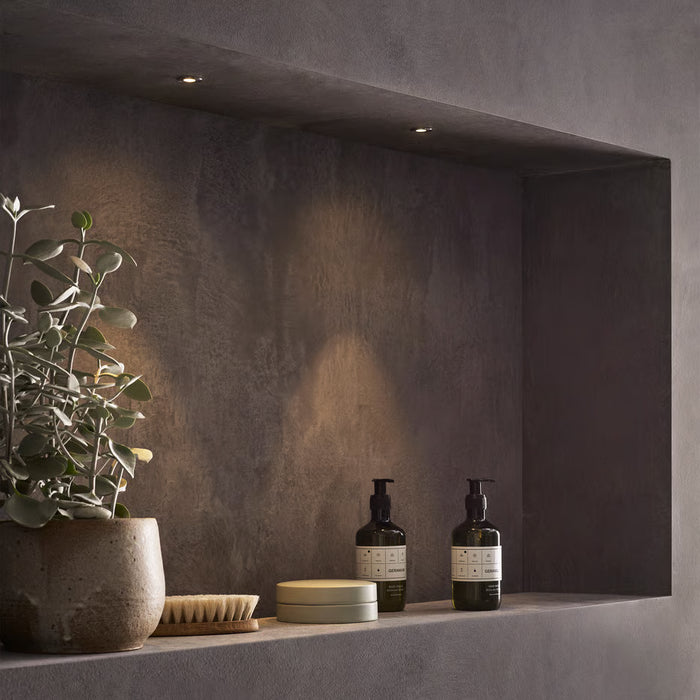

Astro specifies the fitting as suitable for bathroom zones 1, 2 and 3 when correctly installed with suitable low-voltage control gear. It can also be used in appropriate exterior applications, subject to correct drainage, installation and cable protection.
Although IP65 provides strong water resistance, the fitting is not intended for permanent submersion. The installation must follow Astro’s instructions and applicable electrical regulations.
Ground, Wall or Ceiling Installation
The Terra Round 28 offers flexible mounting and can be installed as a:
- Recessed ground light
- Low-level wall marker light
- Step or pathway light
- Recessed ceiling marker
- Bathroom wall or floor light
- Architectural accent light
Astro officially lists ground, wall and ceiling mounting orientations for product code 1201005.

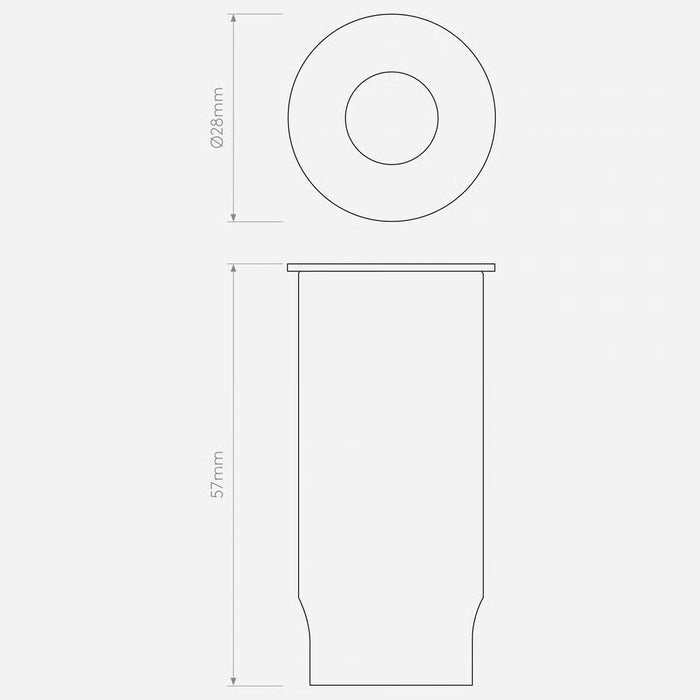

Compact 28mm Circular Design
The Terra Round 28 has an exceptionally compact visible diameter of approximately 28mm and an overall depth of approximately 57mm.
The official installation information specifies:
- Visible fitting diameter: 28mm
- Overall fitting depth: 57mm
- Standard solid-wall cut-out: 25mm
- Plasterboard cut-out: 20mm
- Recess depth: 57mm
- Supplied cable length: approximately 500mm
- Gross weight: approximately 0.11kg
The installation surface and available recess space should be checked before cutting the opening.
Requires a 350mA Constant-Current Driver
The Terra Round 28 is a Class III low-voltage fitting and requires a compatible 350mA constant-current LED driver.
The driver must be selected according to the number of Terra fittings being installed, their electrical characteristics and the required control method. The light must not be connected directly to a standard 230V mains supply without the correct driver.
Astro provides a dedicated driver calculator to help installers identify compatible control gear.
Dimmable with Compatible Control Gear
The Astro Terra Round 28 can be dimmed, but dimming depends on the selected driver and lighting-control system.
A compatible dimmable 350mA constant-current driver is required. This allows the light level to be reduced for subtle evening illumination or increased where clearer pathway and orientation lighting is needed.
Suitable for Multiple-Fitting Installations
Multiple Terra Round 28 lights can potentially be connected to one suitable constant-current driver. The maximum number depends on the voltage range, output and wiring requirements of the selected driver.
This makes the product suitable for coordinated installations around:
- Garden paths
- Exterior steps
- Decking edges
- Bathroom walls and floors
- Hotel landscaping
- Courtyards
- Architectural features
- Interior circulation routes
Driver selection and wiring should follow Astro’s official driver calculator and installation instructions.
Important Coastal Limitation
Astro states that the Terra Round 28 is not suitable for installation within five miles, approximately eight kilometres, of the coast.
For coastal properties or other highly corrosive environments, a product specifically identified by Astro as coastal suitable should be selected instead.
Not Suitable for Vehicle Traffic
The Terra Round 28 is a decorative recessed ground and marker light, but Astro recommends against driving over it.
It should not be installed in driveways, parking areas, vehicle access routes or other locations where it may be exposed to vehicle weight.
Key Product Features
- Astro Terra Round 28 LED recessed light
- Manufacturer product code: 1201005
- Brushed Stainless Steel finish
- Compact 28mm circular face
- Integrated 1W high-powered LED
- Approximately 53-lumen output
- Warm-white 3000K colour temperature
- CRI 80 colour rendering
- Three-step MacAdam colour consistency
- Approximately 53.5-degree beam angle
- Integrated LED lifetime of approximately 42,000 hours
- IP65 dust- and water-resistant construction
- Suitable for bathroom zones 1, 2 and 3
- Ground, wall or ceiling installation
- Class III low-voltage construction
- Requires a 350mA constant-current driver
- Dimmable with compatible control gear
- Unswitched operation
- Wired electrical connection
- Approximately 25mm solid-wall cut-out
- Approximately 20mm plasterboard cut-out
- Approximately 57mm recess depth
- Approximately 500mm cable length
- Not suitable for vehicle traffic
- Not recommended within five miles of the coast
- Supersedes Astro product code 1201003
Ideal Applications
The Astro Terra Round 28 LED is suitable for:
- Exterior pathway marker lighting
- Garden step illumination
- Decking edge lights
- Recessed patio lighting
- Low-level exterior wall lighting
- Bathroom zones 1, 2 and 3
- Shower-room marker lighting
- Interior stair and corridor lighting
- Hotel and hospitality landscaping
- Residential entrances
- Courtyards and terraces
- Architectural feature lighting
- Ceiling-mounted accent lighting
