Astro Lighting 1175002 Tango LED 3000K Brushed Stainless Steel Marker Light

Astro Tango LED 3000K Brushed Stainless Steel Marker Light – 1175002

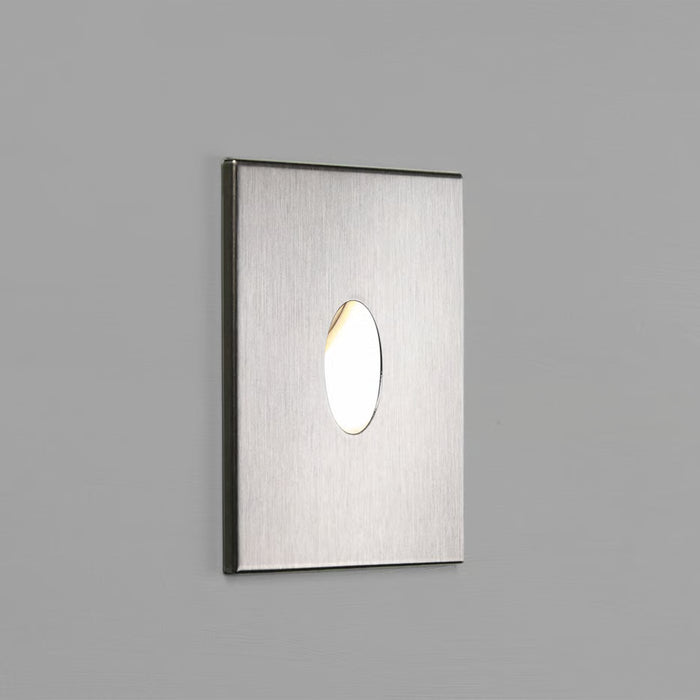

Create discreet low-level lighting in bathrooms, staircases, hallways and architectural wall installations with the Astro Tango LED 3000K 1175002. Finished in Brushed Stainless Steel, this compact recessed marker light features a square faceplate, clear glass diffuser and integrated warm-white LED.

The Tango is designed to provide subtle orientation and accent lighting rather than general room illumination. Its controlled 23-lumen output can help identify steps, pathways, corridors and changes in floor level while maintaining a clean, minimalist appearance.

Brushed Stainless Steel Recessed Marker Light

Product code 1175002 is the Brushed Stainless Steel version of the Astro Tango LED 3000K. The metallic finish works well with contemporary bathroom fittings, stainless steel accessories, modern staircases, tiled walls and commercial interior finishes.

Its compact square design makes it suitable for:

• Bathroom marker lighting

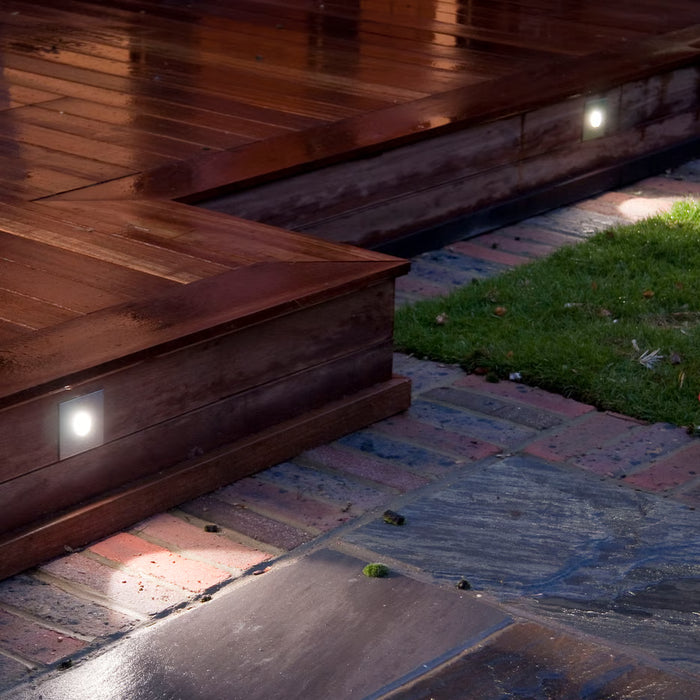

• Stair and step illumination
• Hallway orientation lighting
• Corridor marker lights
• Low-level bedroom lighting
• Hotel circulation areas
• Residential entrance routes
• Architectural wall lighting
• Hospitality interiors
• Discreet night-lighting schemes

The main structure is manufactured from zinc, while the integrated LED is protected by a clear glass diffuser.

Integrated 1W LED Light Source

The Astro Tango contains an integral 1W high-powered LED, so no separate lamp or replacement bulb is required.

It produces approximately 22.68 lumens, normally rounded to 23 lumens. This low output is intended for marker, orientation and decorative accent lighting rather than replacing the main lighting within a bathroom, hallway or staircase.

Astro gives the integrated LED an approximate rated lifetime of 51,000 hours, helping reduce routine maintenance and lamp replacement.

Warm-White 3000K Output

Product code 1175002 produces a 3000K warm-white light. This colour temperature offers a clean but comfortable appearance suitable for modern bathrooms, corridors, hotels and residential interiors.

The warm-white output complements stainless steel, chrome, stone-effect tiles, timber flooring and neutral wall finishes without creating the colder appearance associated with higher colour temperatures.

High CRI 90 Colour Rendering

The integrated LED has a high CRI 90 colour-rendering rating, helping nearby surfaces, materials and decorative finishes appear more natural.

Astro also specifies three-step MacAdam colour consistency, helping multiple Tango marker lights produce a more consistent light appearance when installed together in a staircase, hallway or bathroom project.

IP65 Bathroom Marker Light

The Astro 1175002 has an IP65 rating, providing complete protection against dust ingress and protection against water jets.

Astro specifies the Tango LED as suitable for bathroom zones 1, 2 and 3, provided it is correctly installed with compatible low-voltage control gear and positioned in accordance with current electrical regulations.

The high ingress-protection rating makes the Tango suitable for bathroom walls, shower-area marker lighting and other moisture-prone locations where a lower-rated fitting may not be appropriate. It is not designed for permanent immersion.

Recessed Wall-Mounted Installation

The Tango LED is designed for recessed wall mounting, leaving only the compact square faceplate visible after installation.

The principal installation dimensions are:

• Faceplate height: 70mm
• Faceplate width: 70mm
• Visible faceplate depth: approximately 2mm
• Circular cut-out diameter: 64mm
• Required recess depth: approximately 100mm
• Gross weight: approximately 0.22kg

The available wall void and mounting surface should be checked before cutting the installation opening.

Requires a 350mA Constant-Current Driver

The Astro Tango is a Class III extra-low-voltage fitting and requires a compatible 350mA constant-current LED driver.

The driver must be selected separately according to the number of Tango fittings, combined forward voltage and required dimming method. Astro states a forward voltage of approximately 3.1V per fitting. The marker light must not be connected directly to a standard 230V mains supply.

Dimmable with Compatible Control Gear

The Tango LED can be dimmed when connected to compatible dimmable control gear.

A suitable 350mA constant-current driver and compatible control system are required. This allows the marker lights to provide brighter orientation lighting when needed or a more subtle glow during the evening and overnight.

Suitable for Multiple-Light Installations

Several Tango marker lights can potentially be connected to one compatible constant-current driver. The number supported will depend on the driver’s voltage range, total connected load and Astro’s wiring requirements.

This makes the product suitable for coordinated installations along staircases, corridors, bathroom walls and other circulation routes. Driver compatibility should be checked using Astro’s driver-selection information before installation.

Interior and Exterior Applications

Astro’s technical datasheet lists the Tango for bathroom, interior and exterior applications. The driver location, wiring, mounting surface and expected exposure to water must still be assessed for each installation.

The product-specific datasheet also states that the Tango is not suitable for installation within five miles, approximately eight kilometres, of the coast. A fitting specifically approved for coastal conditions should be selected for those environments.

Key Product Features

• Astro Tango LED 3000K marker light
• Manufacturer product code: 1175002
• Brushed Stainless Steel finish
• Compact square recessed faceplate
• Integral 1W high-powered LED
• Approximately 22.68-lumen output
• Warm-white 3000K colour temperature
• High CRI 90 colour rendering
• Three-step MacAdam colour consistency
• Approximately 51,000-hour LED lifetime
• IP65 dust- and water-resistant construction
• Suitable for bathroom zones 1, 2 and 3
• Bathroom, interior and specified exterior applications
• Class III extra-low-voltage construction
• Requires a 350mA constant-current driver
• Approximately 3.1V forward voltage per fitting
• Dimmable with compatible control gear
• Unswitched operation
• Clear glass diffuser
• Zinc main construction
• 70mm square visible faceplate
• 64mm circular cut-out
• Approximately 100mm recess depth
• Approximate gross weight of 0.22kg
• Not suitable within five miles of the coast

Ideal Applications

The Astro Tango LED 1175002 is suitable for:

• Recessed bathroom marker lighting
• Bathroom zones 1, 2 and 3
• Stair and step illumination
• Hallway orientation lighting
• Corridor marker lights
• Low-level night lighting
• Hotel and hospitality interiors
• Residential entrance routes
• Bedroom circulation lighting
• Architectural wall lighting
• Decorative recessed accent lighting
• Multiple-light installations with compatible control gear
