Astro Lighting 1175001 Tango LED 3000K Matt White Marker Light

Astro Tango LED 3000K Matt White Recessed Marker Light – 1175001

Create subtle low-level illumination in bathrooms, hallways, staircases and architectural wall-lighting schemes with the Astro Tango LED 3000K 1175001. Finished in Matt White, this compact recessed marker light has a clean square faceplate and an integral warm-white LED, making it suitable for modern residential, hospitality and commercial interiors.

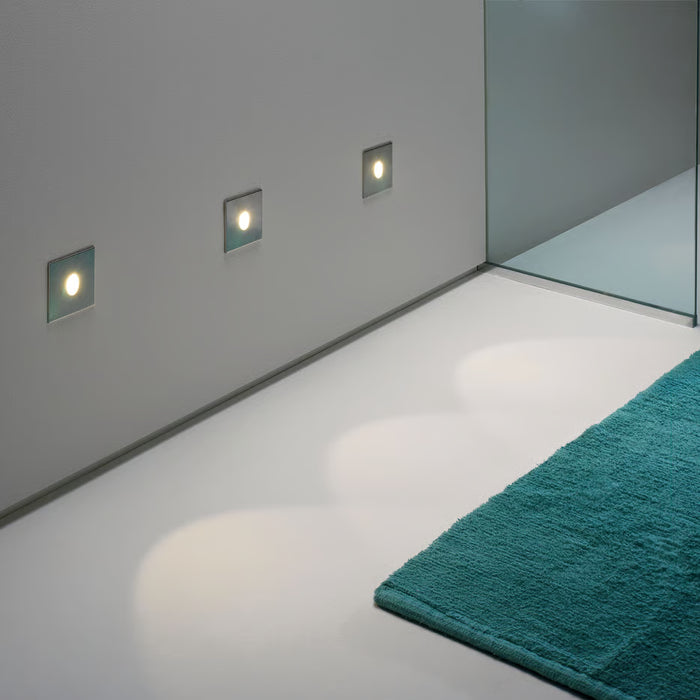

The Tango is designed to provide discreet orientation and accent lighting rather than general room illumination. Its low-output LED creates a soft point of light that can help identify steps, pathways, corridors and changes in floor level without overpowering the surrounding space.

With an IP65 rating and suitability for bathroom zones 1, 2 and 3, the Astro Tango can also be used as a recessed bathroom marker light when installed with the correct constant-current driver and in accordance with applicable wiring regulations.

Matt White Recessed LED Marker Light

Product code 1175001 is the Matt White version of the Astro Tango LED 3000K. The neutral finish allows the square faceplate to blend naturally into white walls, pale tiles, plasterboard surfaces and minimalist interior schemes.

Its discreet design makes it suitable for:

• Bathroom marker lighting

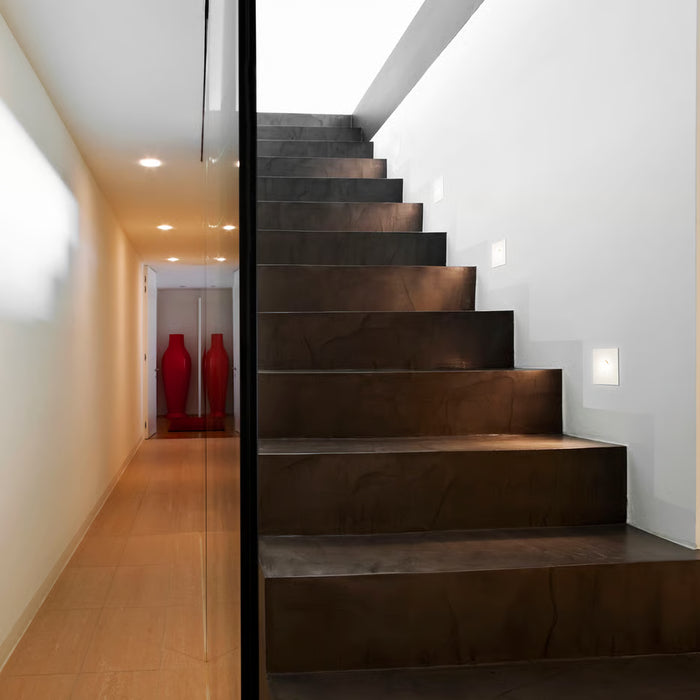

• Stair and step illumination
• Hallway and corridor lighting
• Low-level bedroom lighting
• Hotel guest-room circulation areas
• Residential entrance routes
• Interior wall accent lighting
• Hospitality and commercial interiors
• Recessed orientation lighting
• Covered architectural applications

The main body is manufactured from zinc, while the clear glass diffuser protects the integral LED and maintains the compact appearance of the fitting.

Integrated 1W LED Light Source

The Astro Tango contains an integral 1W high-powered LED, so a separate bulb or lamp is not required.

It produces approximately 22.68 lumens, commonly rounded to 23 lumens, providing a controlled glow suitable for orientation, marker and accent lighting. This relatively low output is intentional and means the Tango should be used as part of a wider lighting scheme rather than as the main source of illumination.

Astro gives the integrated LED an approximate rated lifetime of 51,000 hours, helping minimise routine maintenance and lamp replacement.

Warm White 3000K Lighting

Product code 1175001 produces a 3000K warm-white colour temperature. This delivers a clean yet comfortable light appearance that works well with contemporary bathrooms, corridors, stairs, timber surfaces, stone-effect tiles and neutral interior finishes.

The 3000K output is warmer than cool-white lighting but slightly cleaner than traditional 2700K decorative light, making it suitable for both residential and hospitality applications.

High CRI 90 Colour Rendering

The integrated LED has a high CRI 90 colour-rendering rating. This helps nearby wall finishes, tiles, timber, fabrics and decorative materials appear more natural under the light.

Astro also specifies three-step MacAdam colour consistency, supporting a more uniform light appearance when multiple Tango marker lights are installed within the same project.

IP65 Bathroom and Architectural Lighting

The Astro 1175001 carries an IP65 rating, providing complete protection against dust ingress and protection against water jets.

Astro specifies the Tango LED for bathroom zones 1, 2 and 3, making it suitable for a wider range of bathroom locations than many standard IP44 wall lights. The final installation position must still comply with the manufacturer’s instructions and current electrical regulations.

The IP65 construction also makes the fitting useful for architectural locations that may experience moisture or regular cleaning. However, the product-specific datasheet states that it is not suitable for installation within five miles, approximately eight kilometres, of the coast.

Recessed Wall-Mounted Installation

The Tango LED is designed for recessed wall mounting, creating a neat finish with only the compact square faceplate visible after installation.

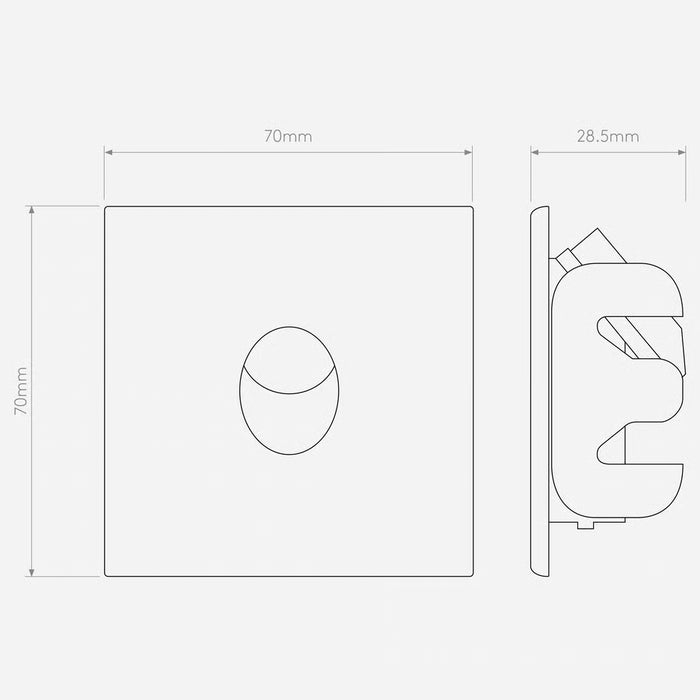

The principal installation dimensions are:

• Faceplate height: approximately 70mm
• Faceplate width: approximately 70mm
• Visible faceplate depth: approximately 2mm
• Circular cut-out diameter: 64mm
• Required recess depth: approximately 100mm
• Gross weight: approximately 0.22kg

The required wall void and mounting surface must be checked carefully before cutting the installation opening.

Requires a 350mA Constant-Current Driver

The Astro Tango is a Class III low-voltage fitting and must be powered using a compatible 350mA constant-current LED driver.

The driver is not built into the marker light and must be selected separately according to the number of fittings, total LED load and required control method. Astro states that the forward voltage per fitting is approximately 3.1V, which should be considered when specifying the driver and connected circuit.

The Tango must not be connected directly to a standard mains electrical supply without the correct constant-current control gear.

Dimmable with Compatible Control Gear

The Tango LED can be dimmed, but dimming is dependent on the selected control gear.

A compatible dimmable 350mA constant-current driver and suitable dimming system must be used. This can allow the marker lights to be reduced for subtle overnight orientation lighting or increased where clearer pathway illumination is required.

Unswitched Marker Light

The Astro Tango does not include an integral switch. It must be controlled through an external wall switch, lighting-control system, timer, sensor or compatible dimming arrangement.

Multiple Tango fittings can be connected as part of a coordinated stair, hallway or bathroom lighting circuit, provided the selected driver supports the number and electrical characteristics of the connected lights.

Key Product Features

• Astro Tango LED 3000K marker light
• Manufacturer product code: 1175001
• Contemporary Matt White finish
• Compact square recessed faceplate
• Integral 1W high-powered LED
• Approximately 22.68-lumen output
• Warm-white 3000K colour temperature
• High CRI 90 colour rendering
• Three-step MacAdam colour consistency
• Approximately 51,000-hour LED lifetime
• IP65 dust- and water-resistant construction
• Suitable for bathroom zones 1, 2 and 3
• Suitable for interior and specified exterior applications
• Class III low-voltage construction
• Requires a 350mA constant-current driver
• Approximate 3.1V forward voltage per fitting
• Dimmable with compatible control gear
• Unswitched operation
• Clear glass diffuser
• Zinc main construction
• Suitable for mounting on normally flammable materials
• 70mm square visible faceplate
• 64mm circular cut-out
• Approximately 100mm recess depth
• Approximate gross weight of 0.22kg
• Not suitable within five miles of the coast

Ideal Applications

The Astro Tango LED 1175001 is suitable for:

• Recessed bathroom marker lighting
• Bathroom zones 1, 2 and 3
• Staircase and step lighting
• Hallway orientation lights
• Corridor marker lighting
• Low-level night lighting
• Hotel and hospitality interiors
• Residential entrance routes
• Bedroom circulation lighting
• Architectural wall lighting
• Decorative recessed accent lighting
• Multiple-light installations using compatible control gear
