Ansell AZLX/1/CW 100/150/200W Z LED Linear Opti-X Multi Beam Multi Wattage Black

Ansell AZLX/1/CW Z LED Linear Opti-X 100–200W Multi-Beam IP65 High Bay

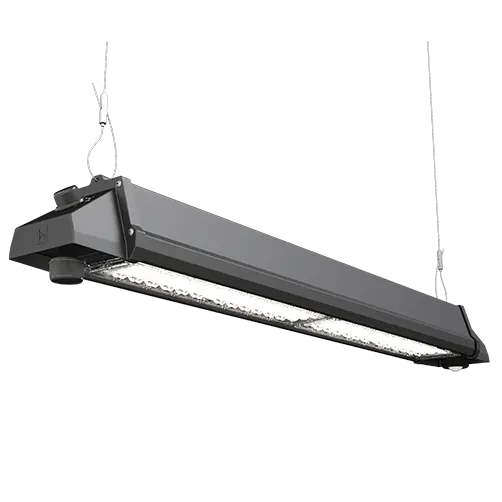

The Ansell AZLX/1/CW Z LED Linear Opti-X is a powerful and highly adaptable industrial linear LED high bay designed for warehouses, distribution centres, production facilities, factories, sorting areas and other large commercial or industrial buildings where mounting heights and lighting requirements can vary across the same site.

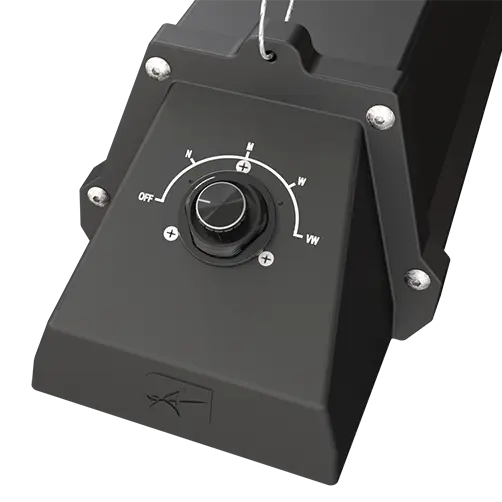

Rather than committing the installer to one fixed wattage and beam pattern, the Z LED Linear Opti-X combines three selectable power outputs and four selectable beam distributions in one luminaire. Using two onboard selectors, the fitting can be configured for 100W, 150W or 200W, while the optic can be changed between 40°×80°, 50°×100°, 70°×120° and 100°×120° distributions.

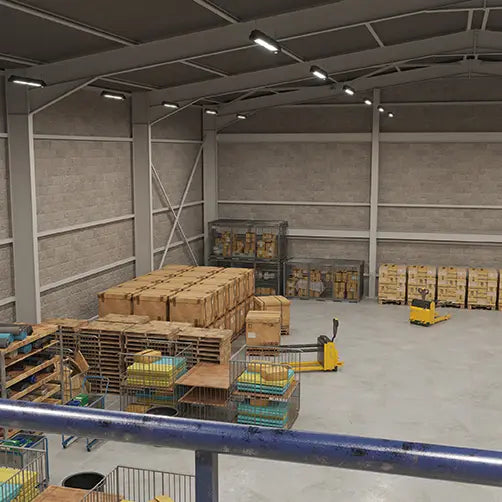

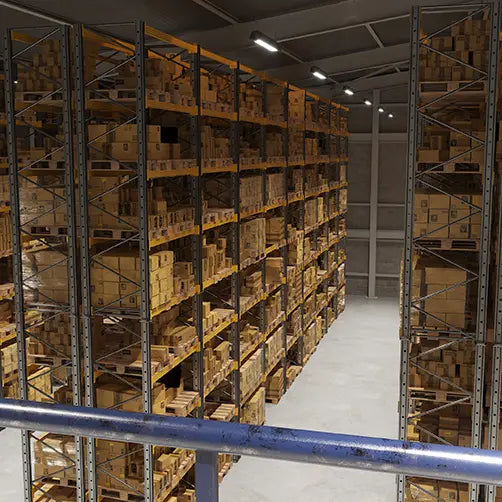

That flexibility makes the Opti-X particularly useful for warehouse racking, open storage areas, manufacturing floors and leased industrial buildings, because the same fitting can be adapted if racking positions, working areas or mounting requirements change in the future. Ansell specifically highlights rented warehouses as an example where end users can modify the installation simply by changing the switch settings.

At its different power settings, the AZLX/1/CW delivers approximately 17,000 lumens at 100W, 24,000 lumens at 150W and 30,000 lumens at 200W, all with a fixed 5000K cool-white output.

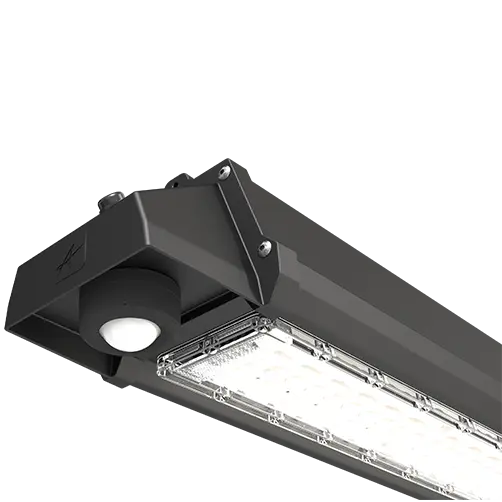

With IP65 ingress protection, IK10 impact resistance, die-cast aluminium construction, 0/1–10V dimming as standard and plug-and-play sensor capability, the Ansell Z LED Linear Opti-X is built as a serious commercial and industrial lighting solution rather than a basic fixed-output warehouse fitting.
