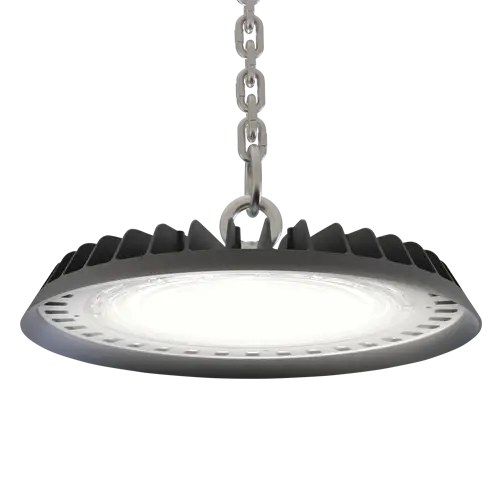

Ansell AZLE2/2 Z LED ECO High Bay 150W 175W 200W CCT Selectable

The Ansell AZLE2/2 Z LED ECO Highbay 2 is a high-performance industrial LED high bay light designed for warehouses, factories, distribution centres, workshops, retail environments and other commercial applications requiring powerful, efficient and reliable illumination.

With selectable power outputs of 150W, 175W and 200W and selectable 4000K, 5000K and 6500K colour temperatures, the AZLE2/2 gives installers the flexibility to configure the high bay to suit the lighting requirements of different environments. At its maximum 200W setting, the fitting can deliver up to 26,000 lumens, with efficacy of up to 130 lumens per watt.

Power Selectable LED High Bay

One of the major advantages of the AZLE2/2 is its selectable output.

The same high bay can be configured to:

• 150W
• 175W
• 200W

This allows the installer to select the appropriate power level for the application rather than requiring different fittings for different lighting requirements.

The maximum output provides up to 26,000 lumens, making the AZLE2/2 suitable for large industrial and commercial spaces where high levels of illumination are required.

CCT Selectable 4000K, 5000K & 6500K

The AZLE2/2 also features selectable colour temperature, providing:

• 4000K – neutral/cool white
• 5000K – cool white
• 6500K – daylight

This makes the fitting adaptable to different applications and user preferences without needing to specify separate colour-temperature versions.

High Efficiency up to 130lm/W

The Ansell Z LED ECO Highbay 2 provides efficacy of up to 130lm/W, helping deliver high levels of illumination while keeping energy consumption lower than traditional industrial lighting technologies.

With up to 26,000 lumens, the AZLE2/2 can provide substantial light output for warehouses, manufacturing facilities and other large areas.

IP66 Industrial LED High Bay

The AZLE2/2 has an IP66 rating, providing a high level of protection against dust ingress and powerful water jets.

This makes it suitable for demanding industrial and commercial environments where the lighting equipment may be exposed to dust, moisture or challenging operating conditions. Ansell's Z LED ECO range is designed for both internal and external applications.

IK09 Impact Protection

The fitting also provides IK09 impact protection, making it suitable for environments where the luminaire may be exposed to accidental knocks or mechanical impact.

The combination of IP66 and IK09 makes the AZLE2/2 particularly well suited to industrial environments.

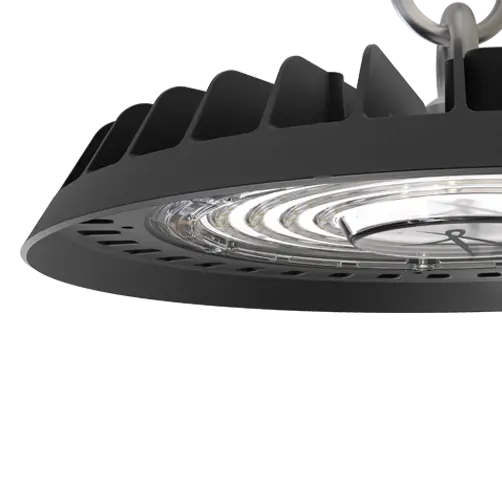

Robust Aluminium Construction

The AZLE2/2 uses a robust die-cast aluminium construction with a powder-coated finish and integrated heatsink.

The heatsink helps manage operating temperatures, while the die-cast construction provides a durable housing for demanding commercial and industrial applications.

Controlled 90° Beam Angle

The lensed diffuser provides controlled light distribution, with a 90° beam angle designed to provide effective illumination across industrial and commercial spaces.

The controlled distribution can help provide more consistent lighting across working areas while reducing unnecessary light spread.

Easy Installation

The AZLE2/2 features an integral LED driver, helping keep the fitting compact and lightweight.

An installation eye-bolt is supplied as standard, while alternative installation methods include:

• Drop rods
• Jack chain
• Catenary wire

The fitting is also supplied pre-wired with a 1 metre cable and AFIX connector, helping simplify installation.

Suitable Applications

The Ansell AZLE2/2 is suitable for a wide range of industrial and commercial applications, including:

• Warehouses
• Distribution centres
• Logistics facilities
• Factories
• Manufacturing facilities
• Industrial workshops
• Retail warehouses
• Commercial storage areas
• Ancillary areas
• Large commercial buildings
• Industrial production areas
• Agricultural and utility buildings

Ansell identifies the Z LED ECO range for ancillary, hospitality, industrial and retail applications.

Key Features

• Ansell Z LED ECO Highbay 2
• Product code: AZLE2/2
• LED high bay light
• 150W / 175W / 200W selectable
• 4000K / 5000K / 6500K selectable
• Up to 26,000 lumens
• Up to 130lm/W
• 90° beam angle
• CRI 80
• IP66 rated
• IK09 impact protection
• Die-cast aluminium construction
• Powder-coated finish
• Integrated heatsink
• Integral LED driver
• Black finish
• Installation eye-bolt included
• 1m pre-wired cable
• AFIX connector
• Suitable for suspended installation
• Drop rod, jack chain and catenary installation options
• 220–240V AC
• Operating temperature -45°C to +45°C
• Energy efficiency class E
• 3-year warranty

Why Choose the Ansell AZLE2/2?

The Ansell AZLE2/2 Z LED ECO Highbay 2 offers excellent flexibility because both power and colour temperature can be selected from the same fitting.

With up to 26,000 lumens, 130lm/W efficacy, IP66 protection and IK09 impact resistance, it is particularly well suited to demanding industrial and commercial environments.

For electricians, contractors and facilities managers, the selectable 150W/175W/200W output means the fitting can be configured to achieve the required level of illumination without having to stock several different wattage versions.
