Ansell AVAS5/1/B/SM3 Vasco EVO CCT Multi Wattage 1500mm Self-Test Emergency Black

Ansell AVAS5/1/B/SM3 Vasco EVO CCT Multi Wattage 1500mm Self-Test Emergency Black

SKU AVAS5/1/B/SM3
Save 17% Save 17%
£180.00
£180.00 - £180.00
£180.00
£150.00 inc VAT £125.00 exc VAT
£150.00 - £150.00
£150.00 inc VAT £125.00 exc VAT inc VAT £125.00 exc VAT

Estimated delivery time: Next working day

Description

Aluminium bi-directional suspended or surface linear with bi–directional light output as standard with 30% upward light and 70% downward light ratio. High efficiency upto 150lm/W and opal diffuser (provided as standard) provides optimal light uniformity.

Main Features:

  • Adjustable suspension points c/w suspension kit
  • Surface and track mounting available using AVAS/WM/1 and AVAS/P3/1/* accessories
  • 1-10V dimmable as standard

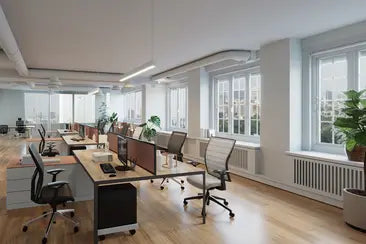

  • Aluminium bi-directional suspended or surface linear suitable for education, commercial and retail applications
  • Bi–directional light output as standard with 30% upward light and 70% downward light ratio (downward only option can be selected if required, please note light output changes in downward only mode)
  • High efficiency upto 150lm/W (only when fitted with UGR diffuser - AVAS*/1/UGR)
  • Opal diffuser (provided as standard) provides optimal light uniformity
  • CCT selectable between 3000K and 4000K and power selectable; offering a choice of 2 outputs, in one luminaire
  • PIR end cap accessory available
  • Pre-wired with 1.5 metre cable
Specification
  • Total (Watts):25W - 40W
  • Lumens Delivered:2500lm - 4500lm (4000K) / 3300lm - 6400lm (4000K w/ CRI:80
  • CCT:3000K/4000K
  • Input:220-240V
  • Operating Temp:-20℃ to 45℃

FAQ's

Can the Vasco EVO be surface mounted as well as suspended?

Yes. The fitting is designed for both suspended and surface-mounted installations. Optional wall mounting and track mounting accessories are also available depending on the project requirements.

What is the benefit of the 30/70 light distribution?

The standard configuration delivers 30% uplight and 70% downlight, helping reduce ceiling contrast, improve visual comfort and create a brighter, more balanced workspace compared with traditional direct-only linear fittings.

Is the Vasco EVO dimmable?

Yes. 1-10V dimming is supplied as standard, allowing integration into lighting control systems and helping improve energy efficiency.

What warranty is offered?

The Vasco EVO is supplied with a 5-year manufacturer warranty, providing confidence for commercial and specification projects.
