Ansell APRIPG/1/BLK Prism Pro CCT Fire Rated Gimbal Dual Wattage Black

Ansell APRIPG/1/BLK Prism Pro CCT Fire Rated Gimbal Dual Wattage Black

SKU APRIPG/1/BLK
£18.30 - £18.30
£18.30 inc VAT £15.25 exc VAT
£18.30 - £18.30
£18.30 inc VAT £15.25 exc VAT inc VAT £15.25 exc VAT

Estimated delivery time: Next working day

Description

 Main Features:

  • Fully tested to meet Part E (acoustic) and Part L (energy) of Building Regulations
  • Wide 60° beam angle for increased light distribution
  • 220-240V IP20 dimmable LED 4 CCT selectable fire rated performance gimbal suitable for residential and hospitality applications
  • CCT selectable between 2700K, 3000K, 4000K and 6000K and power selectable; offering a choice of 2 outputs, in one luminaire
  • 30° tilt angle

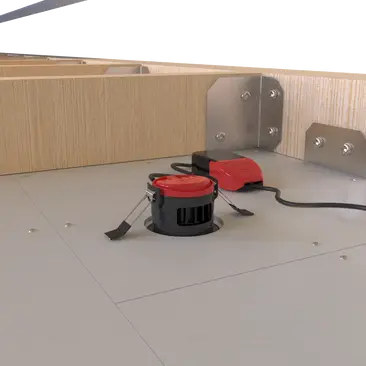

  • New innovative 2 part detachable connector design allows initial wiring and testing to be completed first, then simply plug the downlight back to the connector, ensuring a quick and simple installation
  • Remote driver with 2x1.5mmË› + CPC loop-in, loop-out colour coded push fit piano terminals provide an easy and efficient installation
  • Low profile design and remote driver allows installation into shallow ceiling voids
  • Fully tested for 30, 60 and 90 minute ceiling types to meet Part B of Building Regulations
Specification
  • Total (Watts):5W - 7W
  • Lumens Delivered:530lm - 690lm (4000K)
  • CRI:80
  • CCT:2700/3000/4000/6000K
  • Input:220/240V

Datasheet

FAQ's

Can the Prism Pro be used to correct poor downlight positioning after first-fix?

Yes. The 30° gimbal adjustment can often rescue installations where joists, pipework or existing cut-outs have forced the luminaire away from the ideal position. This is particularly useful in kitchen islands, artwork lighting and sloped ceilings where fixed downlights may create shadowing.

How does the detachable connector affect testing procedures on large projects?

The two-part connector allows circuits to be insulation tested, continuity tested and commissioned before the luminaires are fitted. This reduces the risk of damage during construction phases and allows fittings to be installed later in the programme.

Does the remote driver offer any maintenance advantages?

Yes. In many cases the driver can be accessed and replaced separately from the luminaire, reducing disruption and helping avoid unnecessary ceiling damage during future maintenance works.
