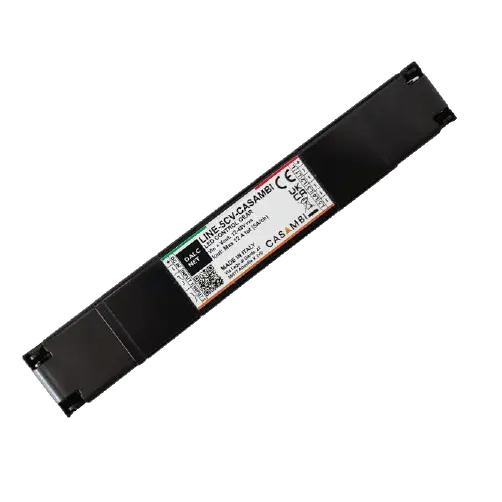

The Ansell OCTO 5-Channel RGBTW Controller provides smart Bluetooth control for constant-voltage LED strip installations. Compatible with 12V, 24V and 48V DC systems, it can manage colour-changing, tunable-white, single-colour and white LED lighting through the free Casambi app.

Installers and users can create customised lighting scenes, animations, timers and daylight-responsive settings from a compatible smartphone or tablet. Two normally open push-button inputs also provide convenient local control and manual override without relying entirely on the app.

Its five output channels support a combined maximum current of 12A, while 4000Hz PWM technology provides smooth, responsive and flicker-free dimming down to 0.8%. Soft-start and soft-stop functions create natural brightness transitions.

Built-in protection against reverse polarity, input faults and power irregularities helps provide dependable operation. The compact IP20 controller is suitable for indoor commercial and residential smart-lighting installations and comes with a five-year Ansell warranty. Ansell Lighting

Key Features

• Five-channel RGBTW LED controller
• Casambi Bluetooth app control
• Compatible with 12V, 24V and 48V DC supplies
• Maximum combined output current: 12A
• Suitable for colour, tunable-white and single-colour LED strip
• Lighting scenes, animations and timers
• Daylight-responsive programming
• Two normally open push-button inputs
• Smooth dimming down to 0.8%
• Flicker-free 4000Hz PWM output
• Soft-start and soft-stop dimming
• Reverse-polarity and input-fuse protection
• IP20 rated for indoor use
• Operating temperature: -10°C to 60°C
• Five-year warranty
