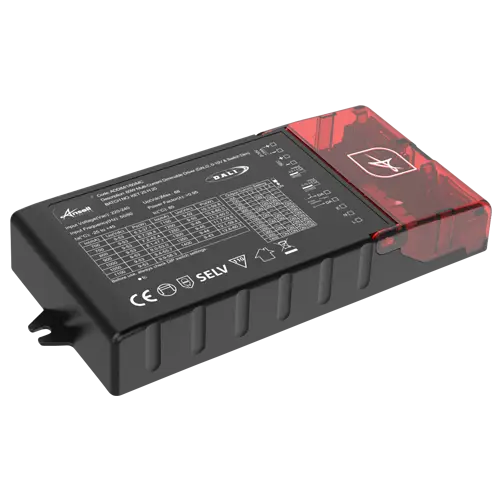

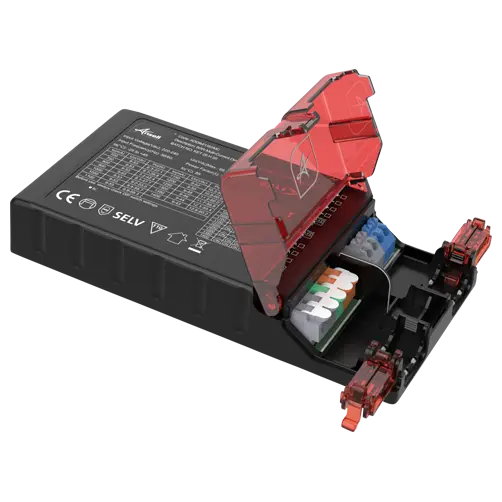

Ansell ADDIM/1/36/MC Multi-current Dimmable Driver 36W

Ansell ADDIM/1/36/MC Multi-current Dimmable Driver 36W

SKU ADDIM/1/36/MC
£19.20 - £19.20
£19.20 inc VAT £16.00 exc VAT
£19.20 - £19.20
£19.20 inc VAT £16.00 exc VAT inc VAT £16.00 exc VAT
Datasheet

Estimated delivery time: Estimated delivery tomorrow*

Description

Ansell ADDIM/1/36/MC 36W Multi-Current Dimmable LED Driver DALI2

The Ansell ADDIM/1/36/MC 36W Multi-Current Dimmable LED Driver is a flexible professional LED power supply designed for compatible commercial lighting, LED strip and LED luminaire applications where adjustable output current and advanced dimming control are required.

Rather than being fixed to a single output current, the ADDIM/1/36/MC uses an integral DIP switch that allows the installer to select the appropriate current for the connected LED load. The driver provides selectable outputs from 500mA through to 1100mA, making one unit suitable for a broad range of compatible LED configurations.

The driver also supports three popular professional dimming methods:

  • DALI2
  • Push Dim
  • 0–10V dimming

Combined with built-in thermal, short-circuit and overload protection, this makes the Ansell ADDIM/1/36/MC a versatile choice for contractors, lighting installers and commercial lighting projects requiring flexible control and dependable LED performance.

Specification


The Ansell ADDIM/1/36/MC is a 36W multi-current dimmable LED driver with selectable 500–1100mA output via integral DIP switches. It supports DALI2, Push Dim and 0–10V dimming and includes thermal, short-circuit and overload protection. The Class II indoor driver operates from 220–240V, is IP20 rated and is supplied with a 5-year Ansell warranty.
