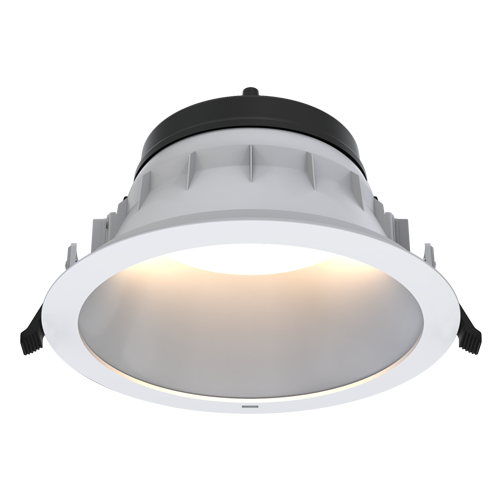

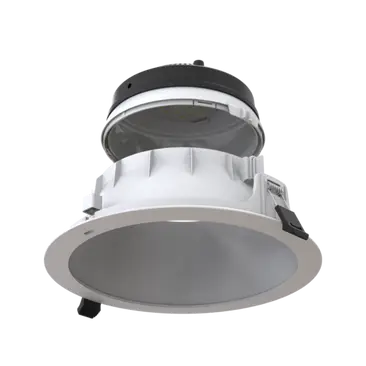

Ansell ACOM1/1/DM3 Comfort EVO 1 Dual Output CCT Downlight DALI-Emergency

• Economic high performance CCT selectable IP44 downlight suitable for commercial and healthcare applications
• Intelligent and eco-friendly 3 part design allows end user the choice of either black or white reflector and trim accessories to add to the downlight (ACOM*/1), offering great customisation and product upgradability
• Deep cut-off angle for glare control and comfort
• CCT selectable between 3000K and 4000K and power selectable; offering a choice of 2 outputs, in one luminaire

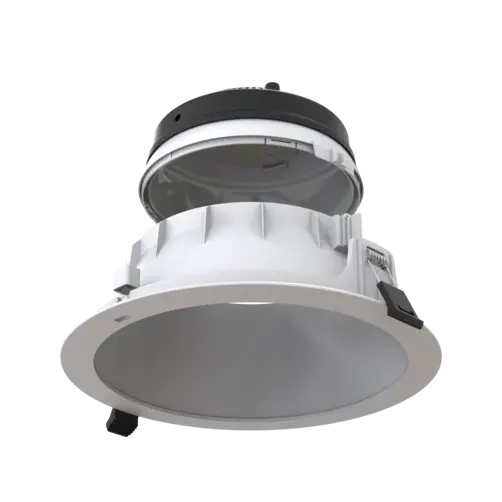

• Downlight design allows installation into existing hole cut-outs of 210mm
• Anti-Ligature kit available for installation in secure environments such as healthcare and educational facilities
• Polycarbonate housing with unique thermal management for durability and optimum lifespan
• Total (Watts):7W - 13W
• Lumens Delivered:1000lm - 1800lm (4000K)
• CRI:80
• CCT:3000/4000K
• Input:220/240V

Datasheet

Can the Comfort EVO be upgraded after installation without replacing the entire fitting?

Yes. The Comfort EVO's modular 3-part design allows the reflector and trim to be changed independently of the main fitting. This means aesthetics can be updated later to suit refurbishment projects without replacing the LED engine or housing.

Does the Comfort EVO help reduce future maintenance costs?

The fitting uses a polycarbonate body with dedicated thermal management to maintain LED performance over its lifespan. Better heat control can help preserve lumen output and reduce premature component failure.

Can I use the same Comfort EVO fitting for different lighting schemes?

Yes. The selectable wattage and colour temperature options allow installers to fine-tune light levels during commissioning, making the same product suitable for corridors, reception areas, classrooms, healthcare spaces and offices.

How does the deep cut-off design improve visual comfort?

The recessed light source reduces direct visibility of the LED, helping minimise discomfort glare and creating a softer visual appearance compared with shallow commercial downlights.

Can emergency lighting be added to the Comfort EVO range?

Emergency versions and self-test emergency options are available, allowing the fitting to form part of a compliant emergency lighting strategy without changing the overall appearance of the installation

What benefits does wattage selection provide for contractors?

A single SKU can often cover multiple lighting requirements, reducing stock holding, simplifying specification changes and helping installers achieve target lux levels without changing fittings.
