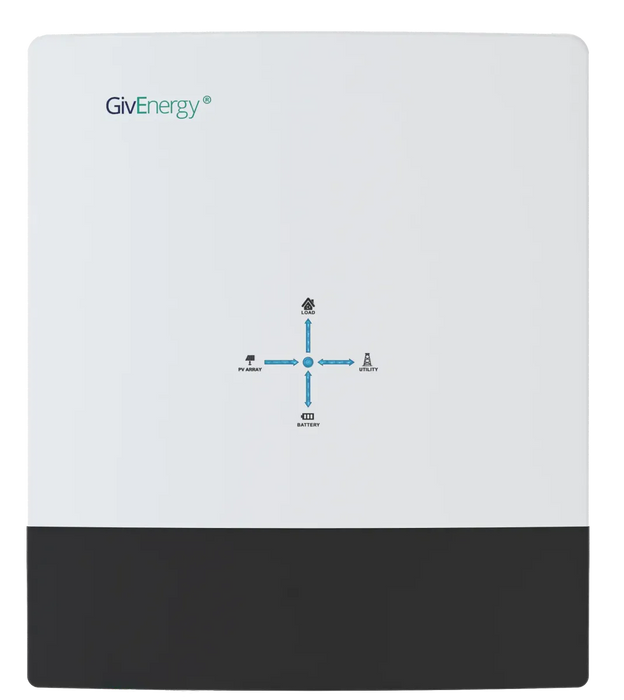

GivEnergy GIV-HY3.6-G3 3.6kW Hybrid Inverter Gen 3

SKU GIV-HY3.6-G3
Original price £975.00 - Original price £975.00
Original price
£975.00 inc VAT £812.50 exc VAT
£975.00 - £975.00
Current price £975.00 inc VAT £812.50 exc VAT inc VAT £812.50 exc VAT

Estimated delivery time: Next working day

Description

The GivEnergy Hybrid Inverter pushes boundaries by intelligently managing solar PV, AC power, and battery storage through a future-ready system.

Designed to pair with modular LiFePO₄ batteries, it allows you to scale your storage as your energy needs evolve, while delivering high efficiency, smart grid charging, and a 10ms switchover for seamless backup power.

With its compact form, built-in Wi-Fi and LAN, and support for remote monitoring, diagnostics, and firmware updates, it gives you complete visibility and control over your home energy system.

The third generation of the GivEnergy Hybrid Inverter is a battery and solar inverter in one unit. It can be coupled directly with solar panels to generate usable electricity in the property as well as store any excess energy for later use in a battery. The low voltage [ 5.0|3.6 ] model supports larger batteries and higher PV throughput, making it suitable for medium to large residential systems.

The Hybrid Inverter aims to minimise export by storing excess energy in the battery during generation hours. Additionally, it will minimise import by discharging to meet demand in the property.

Spec Details

Specification
  • Max. DC Input Power (per string) - 7.5kWp
  • Start-up Voltage - 150V
  • Max. PV Voltage - 580V
  • MPPT Range - 120V - 550V
  • Nominal Voltage - 360V
  • Max. Short Circuit Current (per string) - 20A
  • Max. Input Current (per string) - 15A
  • MPPT Tracker / No. of Strings per MPPT Tracker  - 2/1
  • Nominal AC Output Power - 3600W
  • Max. Apparent Power Output to Utility Grid - 3800VA
  • Max. Output Current - 16A
  • Nominal Voltage / Range - 230V (180 - 272) VAC
  • Frequency Range - 50 / 60 Hz; ±5 Hz
  • AC Connection - Single
  • Battery Type - LiFePO4
  • Battery Voltage Range - 45V - 58V

Datasheet

Product Dimensions

588H x 214D x 480W (mm)
